Product Description
Technical Data
Model: DLPT-40P
CRI: >80
Fixture Dimension: 1200*240*62MM
CCT: 3000k/4000K/6000k
Output Power: 40W
Rated Input: 220-240V
Luminous Flux: 4000lm
Beam Angle: 160°
Light Efficiency: 100lm/W
Certification: CE/ROHS/SAA
LED Type: LED SMD 2835
Warranty / Lifespan: 50000 hours
Driver: Chinese LED driver
Dimmable Option: Dimmable or Dali driver is available on request
Suspension Accessories: No

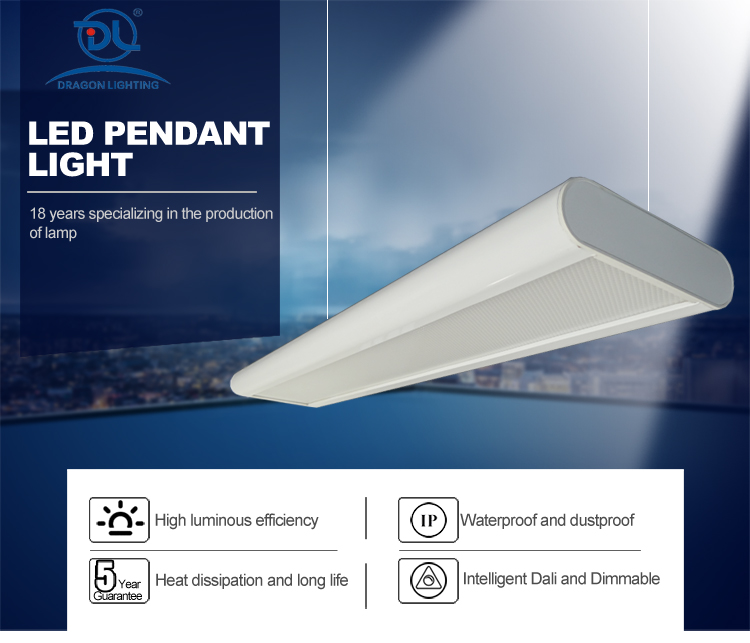

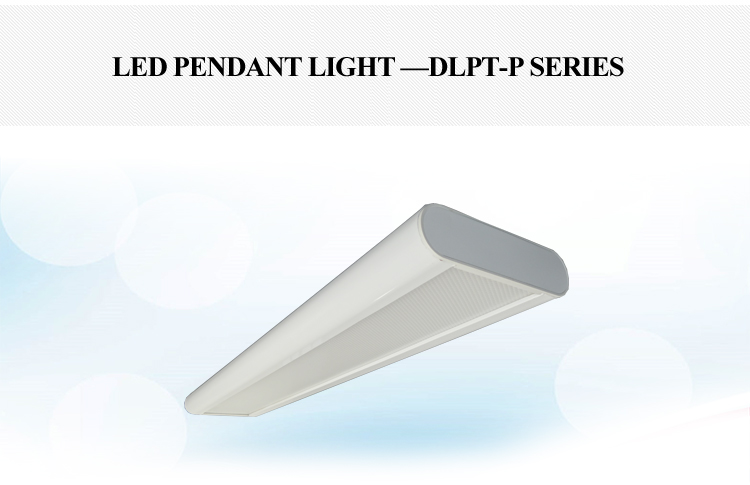

Housing for LED pendant light
High quality steel housing, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, with white/black/grey powder coating.
Diffuser for LED pendant light
Polycarbonate, Acrylic LED Diffuser Specially for LED.
LED type for LED pendant light
It use LED Epistar, Hongli SMD 2835.
Electrical for LED pendant light
Chinese Famous standard driver for LED line.
Mounting for LED pendant light
Suspended mounting

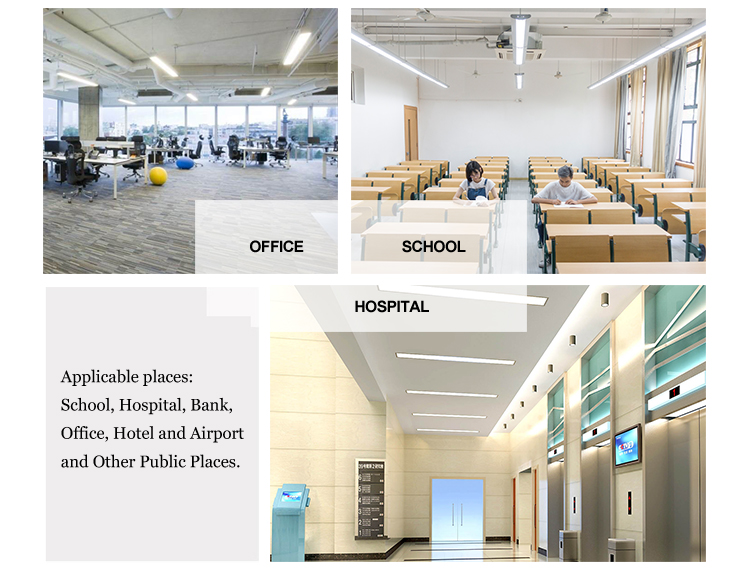

Main applications
1. Office / Hotel / Hospital
2. Shopping mall / Supermarket
3. School / College / University
High efficiency save energy
The light from the LED light is released through the diffuser directly, which isn't absorbed and reflected from other media. So the utilization of the light is relatively high, and the overall luminous efficiency of light is quiet higher. Energy saving, saving 65% than the traditional lights at the same brightness.
Save cost
The components of light panel is simpler than ordinary panel, it will save the guide-plate and overall cost will be more effective.
Luminous uniformity
The light is designed to use the LED luminescence to make a reasonable LED distance, with the diffusion and the height of the light fixtures to achieve the ideal blend of light, because the light SMD are arranged in a matrix, so the reasonable distance between the LED SMD and the PC diffuser, so that the light doesn't have a dark zone, and it improves the brightness uniformity when it's lighting up.
Long life
It has a certain distance between the LED SMD and the diffuser. The heat dissipation provides enough space to ensure the long life of the light. The light life has more than 50000hrs.
Specifications
| Model |
Power |
Leds |
Luminous Flux(lm) |
Efficiency (lm/w) |
CRI |
CCT |
| DLPT-20P |
20 |
2835 |
2000 |
100 |
>80 |
3000K/4000k/6000K |
| DLPT-30P |
30 |
2835 |
3000 |
100 |
>80 |
3000K/4000K/6000K |
| DLPT-40P |
40 |
2835 |
4000 |
100 |
>80 |
3000K/4000K/6000K |
Packing Details
| Model |
Dimension (L*W*H)(mm) |
Packing size (mm) |
Qty/ctn |
| DLPT-20P |
600*240*62 |
640*280*174 |
2 |
| DLPT-30P |
1200*240*62 |
1240*280*174 |
2 |
| DLPT-40P |
1200*240*62 |
1240*280*174 |
2 |
Product Details

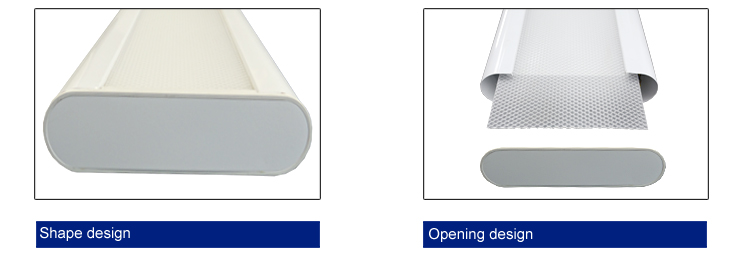

The shape of light has 3D design, the appearance of light is unique and original. The light will be opened by the side cover. It is easy for the client to open and maintence.

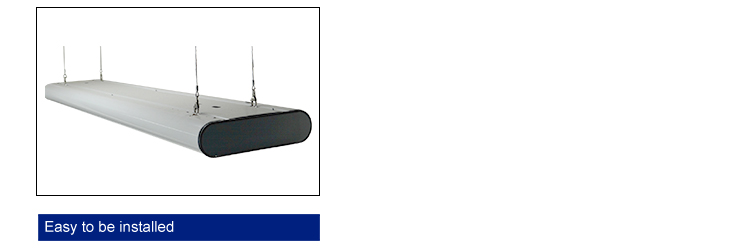

The light is easy to be installed by stainess hung wire or hung derrick.
About Us
It has been concentrated in quality of products and service for customer as principle, innovation and good faith as objection. Building up a professional technical team from practical experience and corporation with customers, making the enterprise develop competitiveness. Our commitment is providing customers the high quality products and satisfactory service. Customers’ satisfaction is our unremitting pursuit.
FAQ
Can I have a sample order for LED light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
What about the lead time?
Sample needs 3-7 days, mass production needs 1-2 weeks according to order quantity.
Do you have any MOQ limit for LED light order?
1pc for sample order is available.
How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
How to place an order for LED light?
Firstly let us know your requirements or application. Secondly we quote according to your requirements. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Do you offer guarantee for the products?
Yes, we offer 3-5 years warranty to our products.
