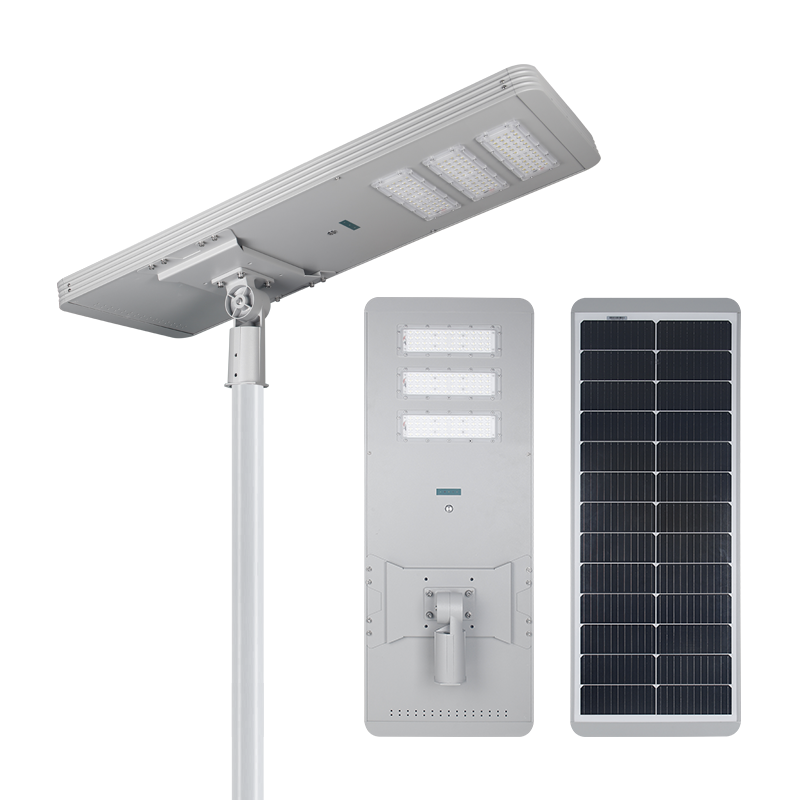

Factory Direct IP65 Waterproof 12.8V Die-cast Aluminum Alloy Outdoor Road Lighting OEM ODM Integrated Solar Street Light

Product Description

Technical Specifications
Product Specification NT-408A NT-408B NT-408C
Enclosure Material Aluminum+PC Aluminum+PC Aluminum+PC
Enclosure Color Grey Grey Grey
Solar Panel Monocrystalline Silicon/18V 100W Monocrystalline Silicon/18V 100W Monocrystalline Silicon/18V 120W
Battery 12.8V/30Ah 12.8V/35Ah 12.8V/40Ah
Light Source SMD3535 LED, 144PCS SMD3535 LED, 192PCS SMD3535 LED, 192PCS
Luminous Efficiency 170LM/W 170LM/W 170LM/W
Color Temperature 3000-6000K 3000-6000K 3000-6000K
Intelligent Control MPTT Controller, Infrared Sensor MPTT Controller, Infrared Sensor MPTT Controller, Infrared Sensor
Certification RoHS, CE, ISO9001 RoHS, CE, ISO9001 RoHS, CE, ISO9001
IP Rating IP65 IP65 IP65
Net Weight 13 kg 13.3 kg 15.6 kg

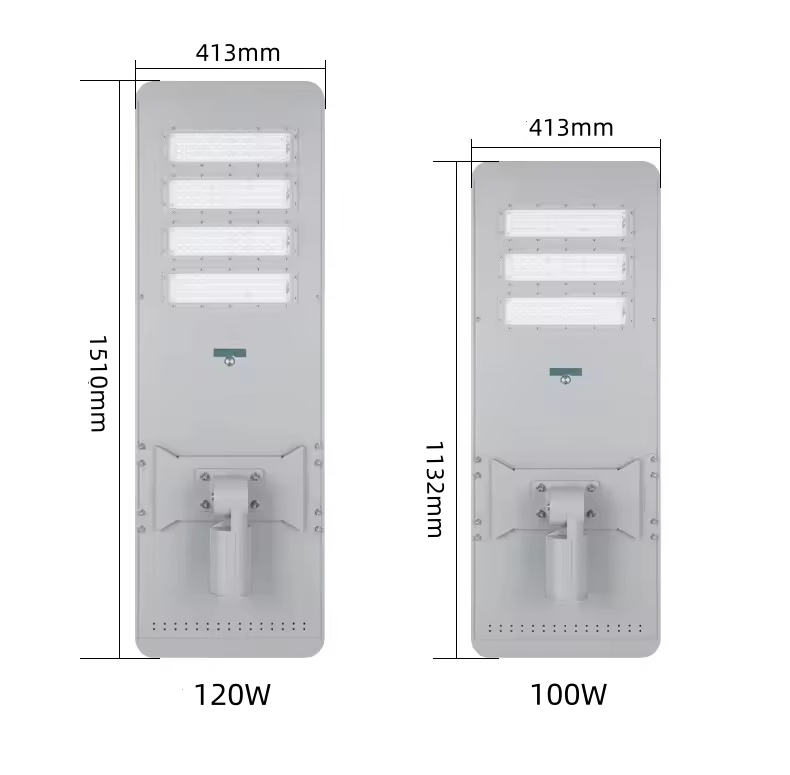

Product Dimensions L1132 × W413 × H50 mm L1172 × W413 × H50 mm L1510 × W413 × H50 mm
Package Dimensions 116 × 44 × 10 cm 120 × 44 × 10 cm 153.5 × 44 × 10 cm
Work Time 8-12 hours 8-12 hours 8-12 hours
Charging Time 4-6 hours 4-6 hours 4-6 hours
Operating Temperature -20 ~ 60℃ -20 ~ 60℃ -20 ~ 60℃
Warranty Period 3 years 3 years 3 years
Product Details & Features

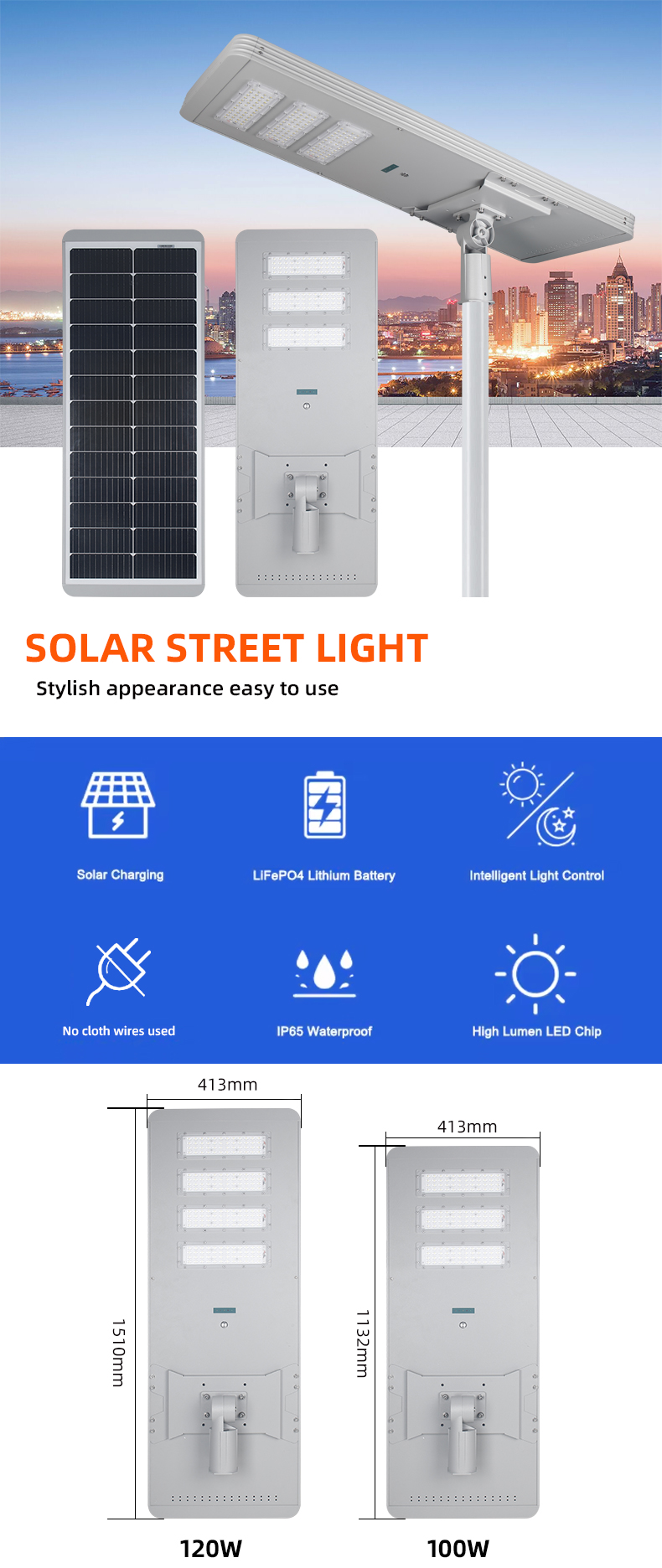

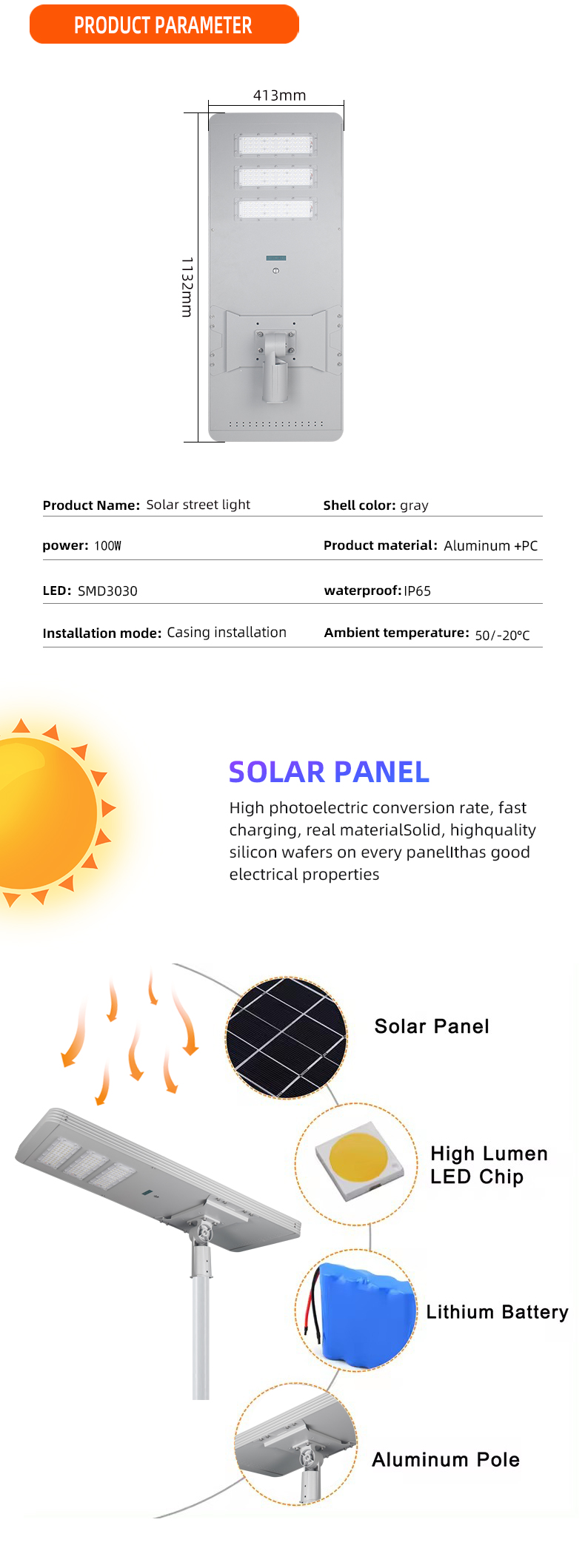

Integrated Solar Street Light Detailed Parameter Infographic Integrated Solar Street Light Functional Detail Display Integrated Solar Street Light Engineering Drawing and Layout
Frequently Asked Questions (FAQ)

What is the warranty period for the NT-408 series solar street lights?

All models in the NT-408 series (NT-408A, NT-408B, and NT-408C) come with a standard warranty period of 3 years.

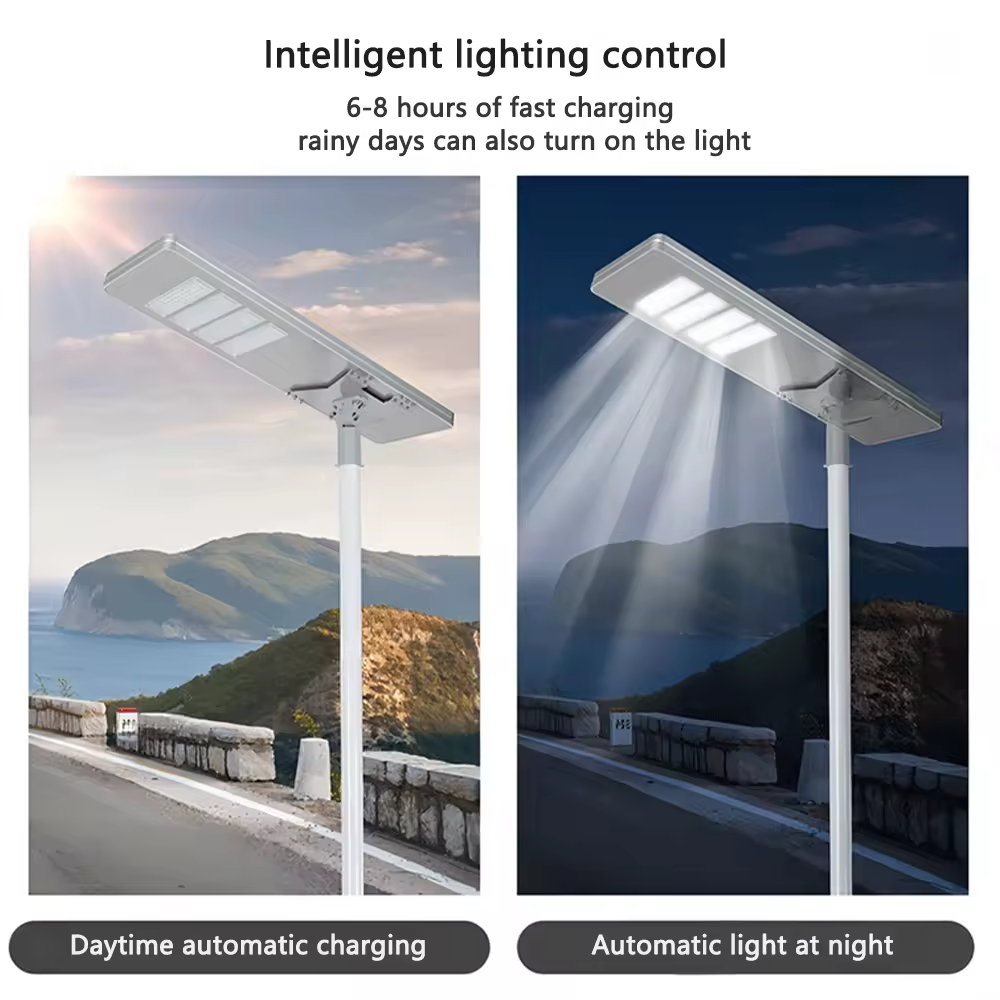

How long does it take to charge, and what is the working duration?

The street lights require approximately 4 to 6 hours of charging time under sunlight and can operate continuously for 8 to 12 hours.

What are the weatherproof characteristics of these street lights?

The products feature an IP65 waterproof rating, protecting them against dust entry and low-pressure water jets from any direction.

What temperatures can this street light operate in?

The operating temperature range is designed to withstand temperatures from -20℃ up to 60℃, suitable for diverse environmental conditions.

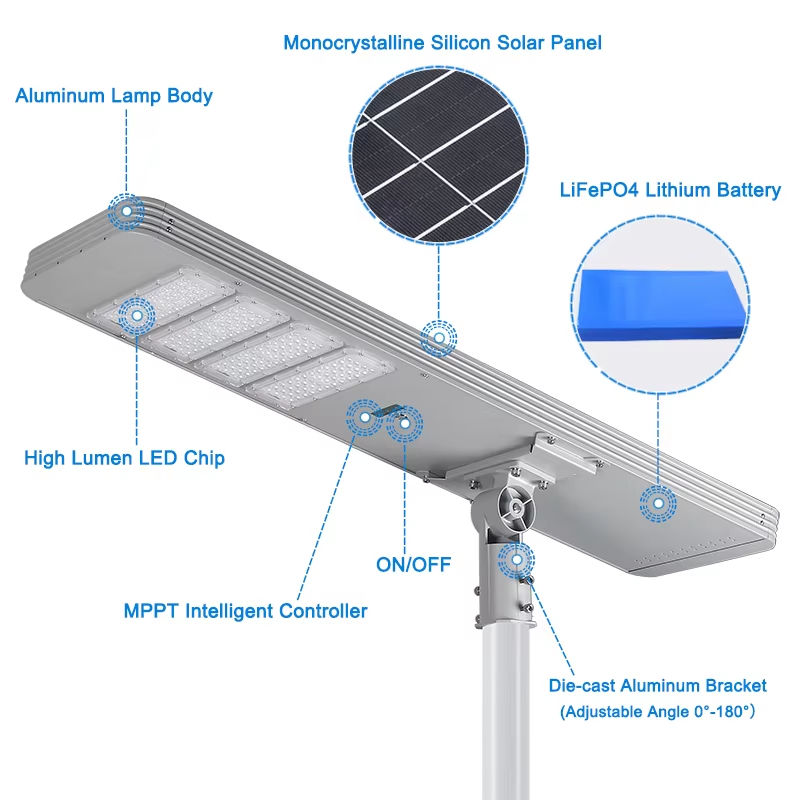

What type of solar panels and control modules are used?

The units utilize high-efficiency Monocrystalline Silicon solar panels combined with an intelligent MPPT Controller and Infrared Sensor for optimal power management.
