Product Description

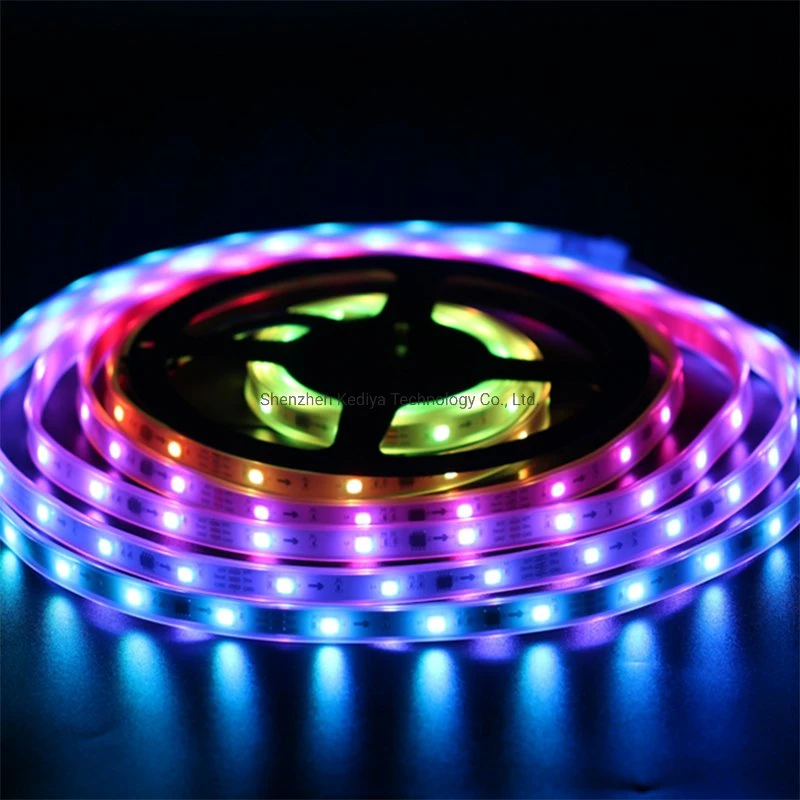

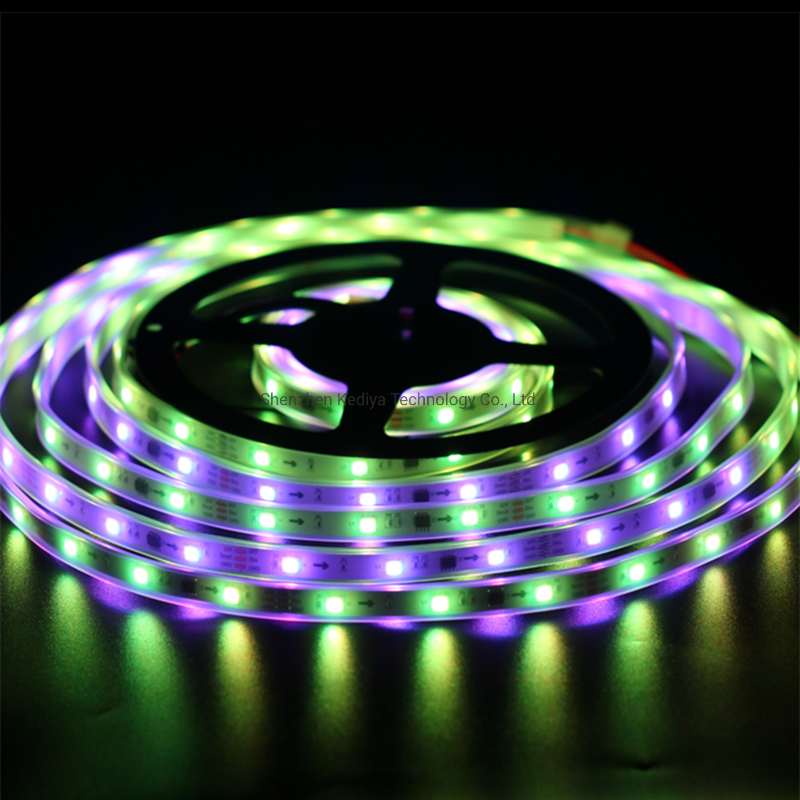

WS2812B WS2811 WS2813 WS2815 5050 RGBIC Smart LED Strip
WS2812 Individually Addressable IC 30/60/144Pixels/Leds/m Light DC5V/12V

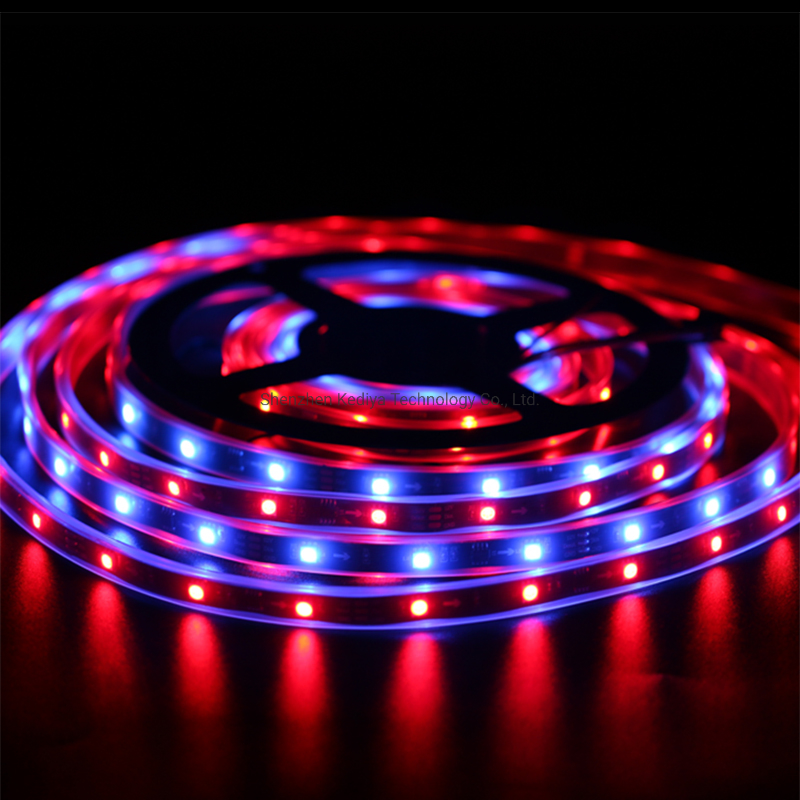

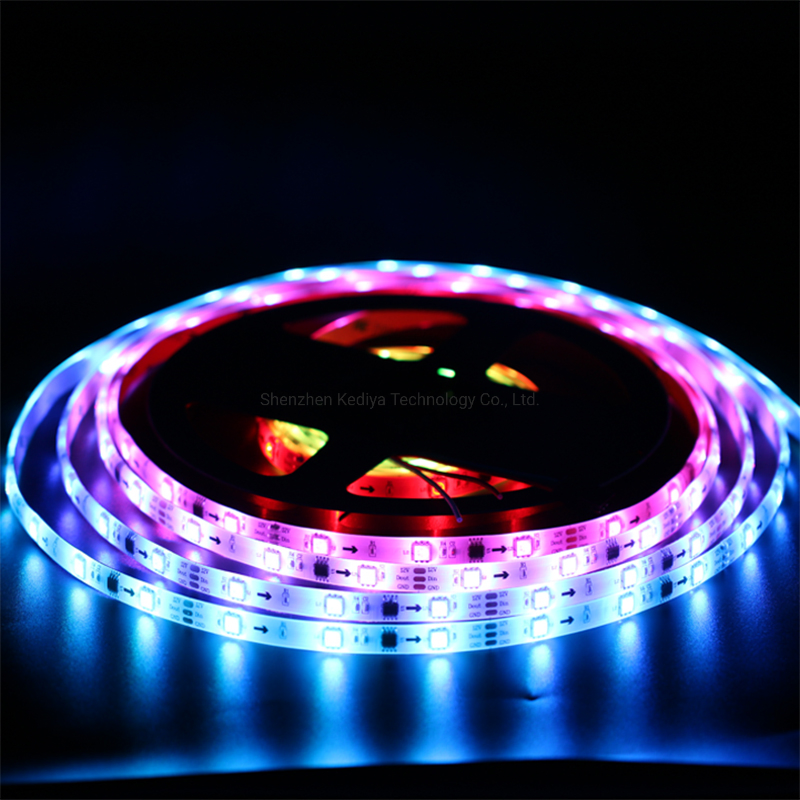

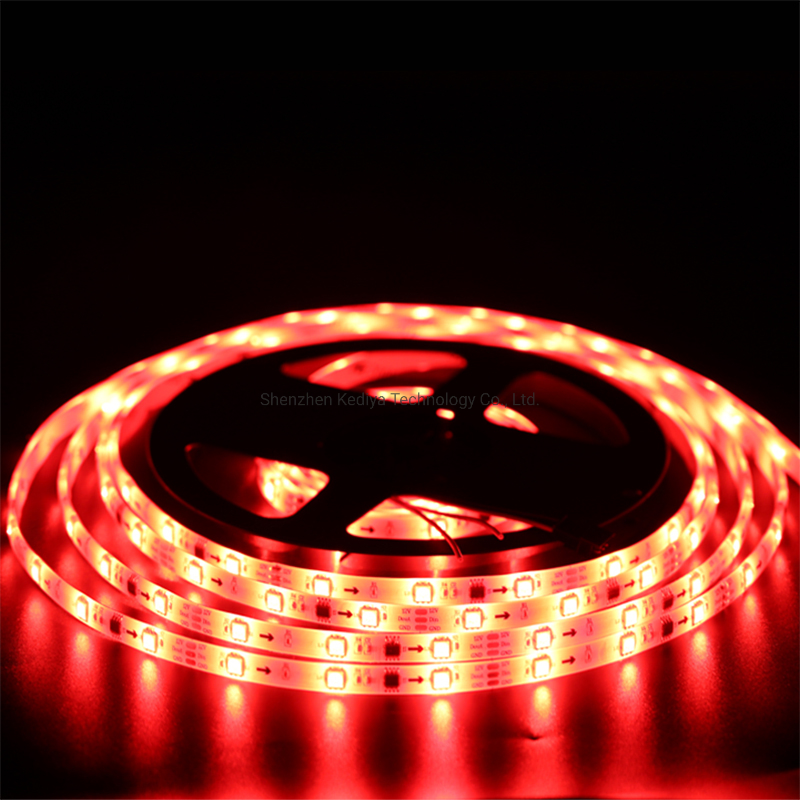

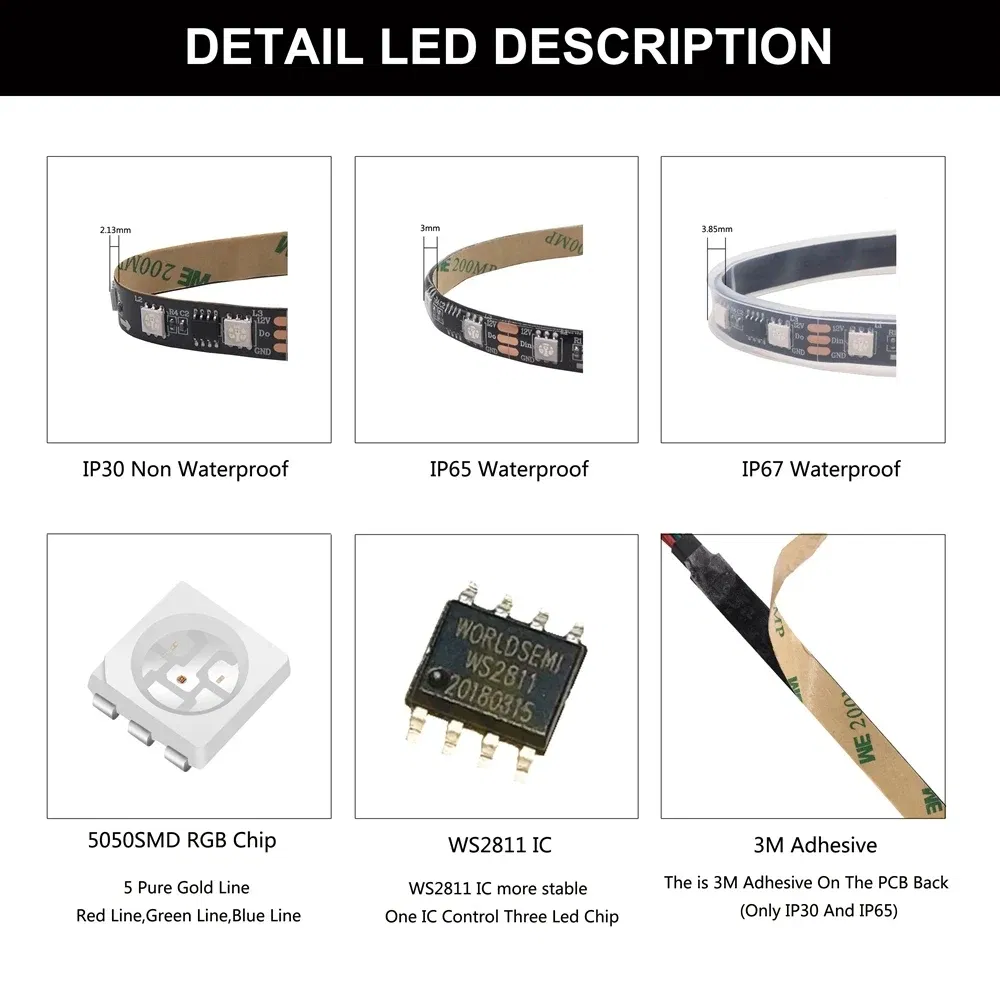

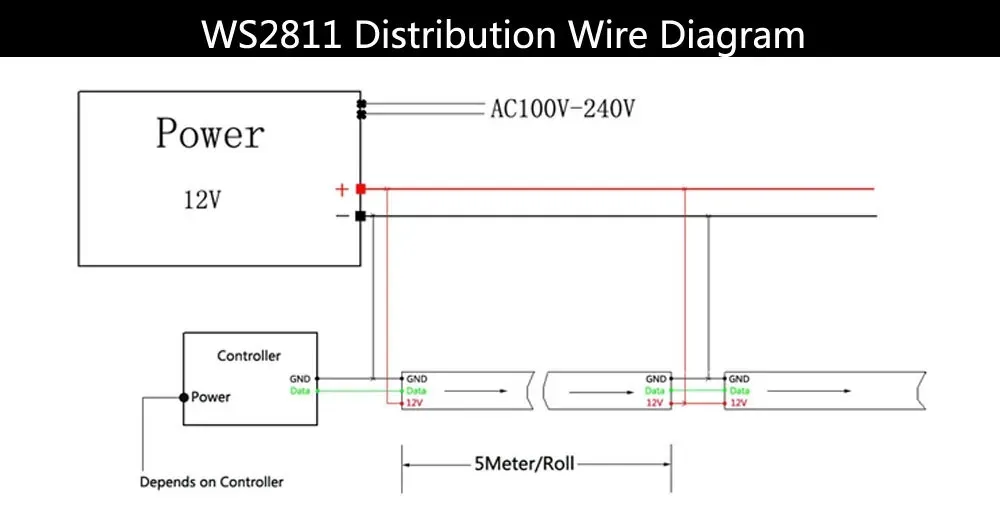

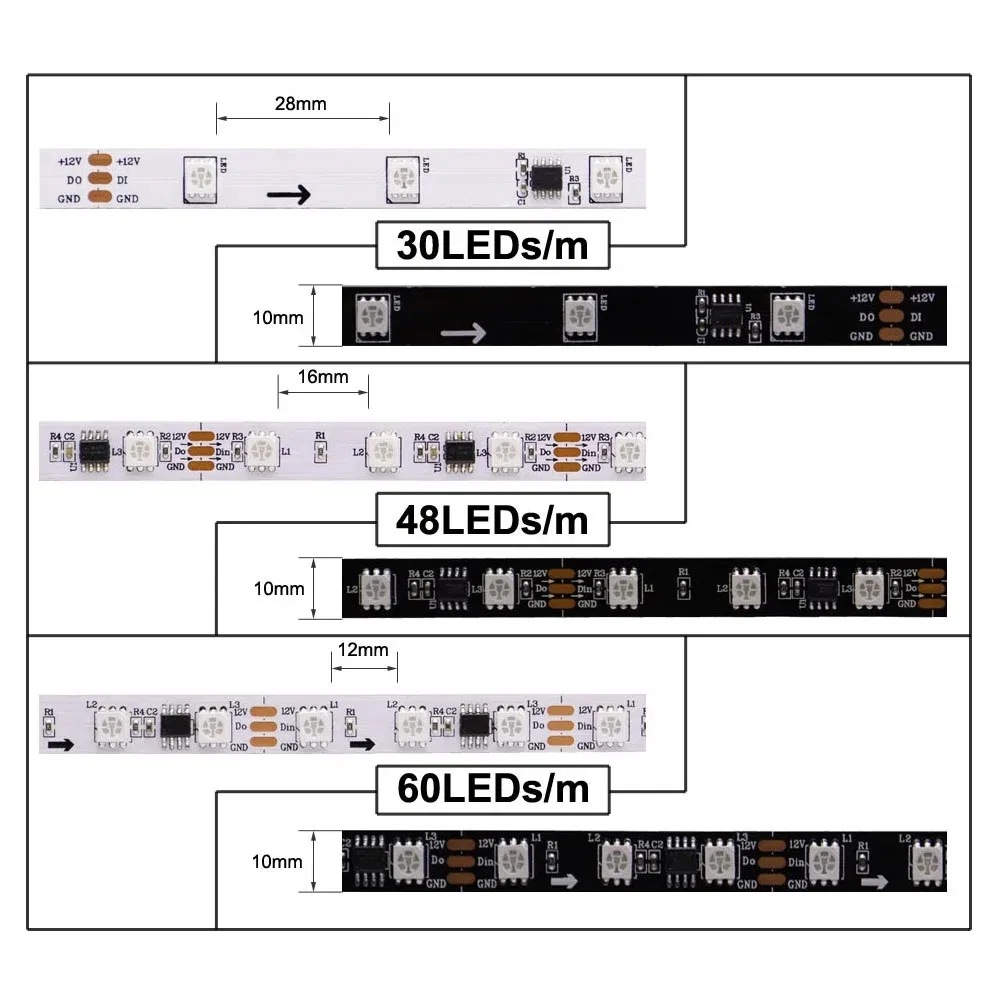

WS2811 LED Strip Specification
- Working Voltage: DC 12V
- LED Source: SMD 5050 RGB
- LED Chip: Epistar

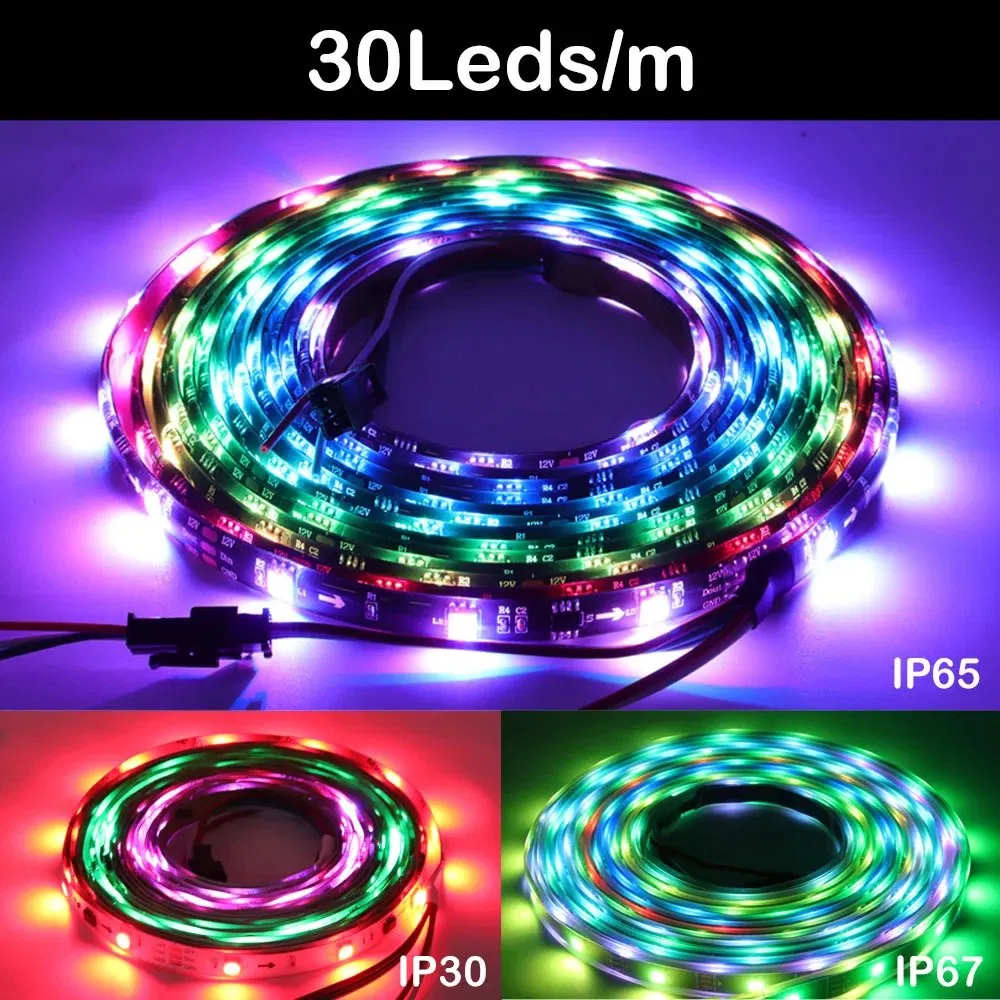

- LED QTY: 30/60 LED / M
- IC QTY: 10/20M
- Power: 9/18W /M
- Grey scale: 256 / Color
- Cutability: 3 led / cutting (Similar WS2811, 1 ic control 3 LED)
- Beam Angle: 120 °
- Color Mode: 133Pattern & 100 Speeds
- IP Grade: ip30 non-waterproof / ip67 waterproof
- Dimension: 5000 x 10 x 2.4mm
- Packaging: 5m/roll 12v WS2811 RGB Strip + 3Pin Connector
- Warranty: 2 Years

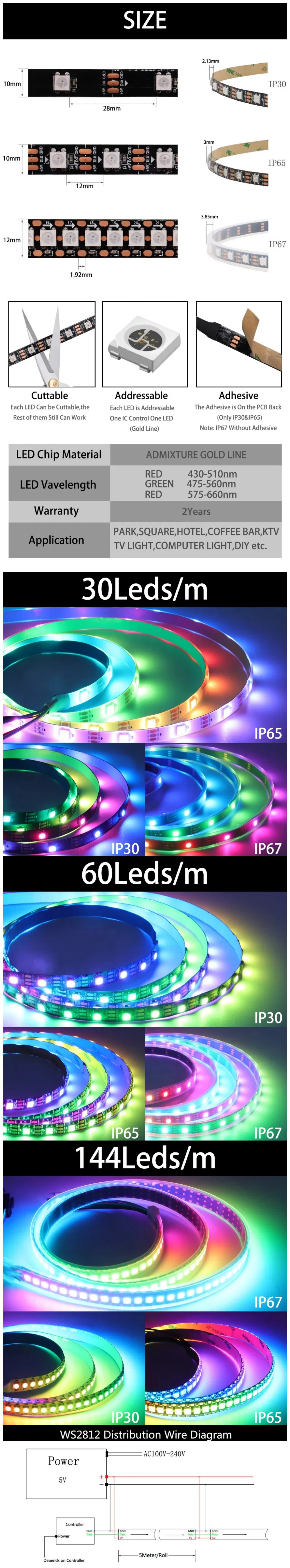

WS2812 LED Strip Specification
- Input Voltage: DC5V

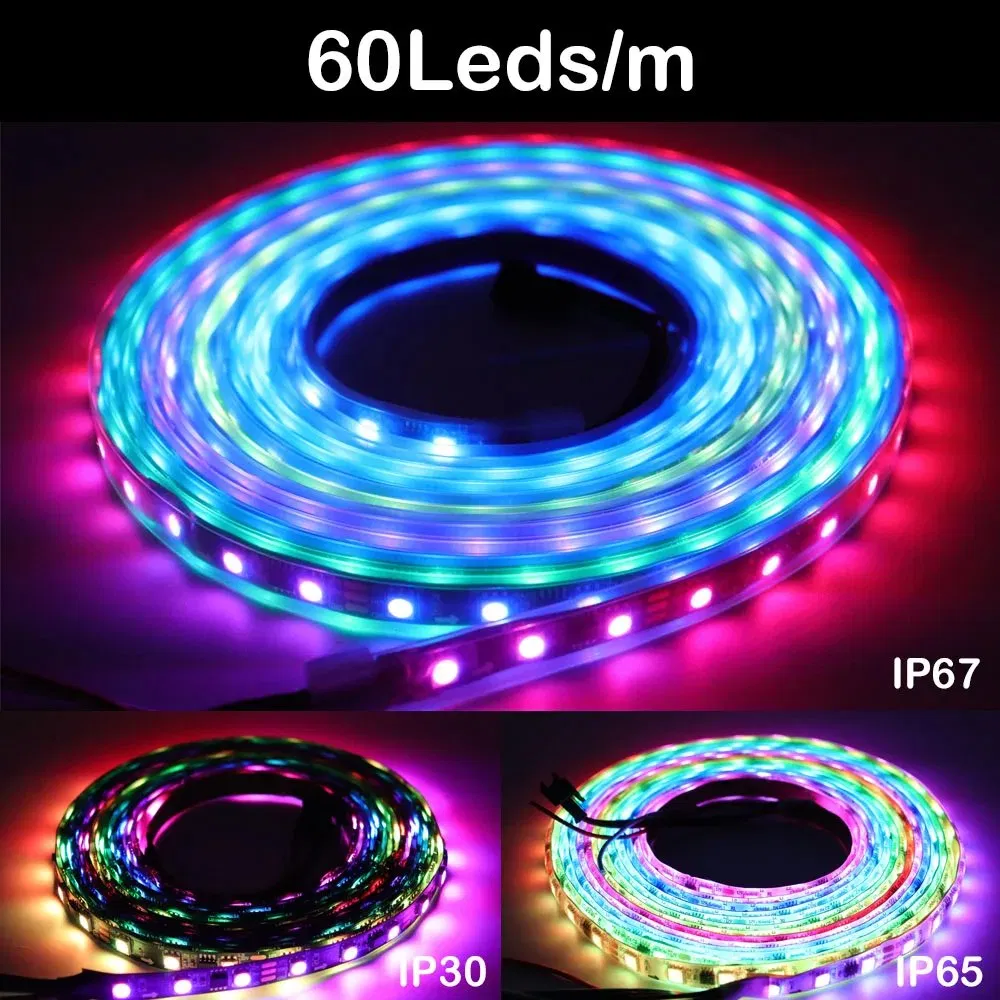

- Power: 30Leds/m - 9Watt/meter | 60Leds/m - 18Watt/meter | 144Leds/m - 43.2Watt/meter

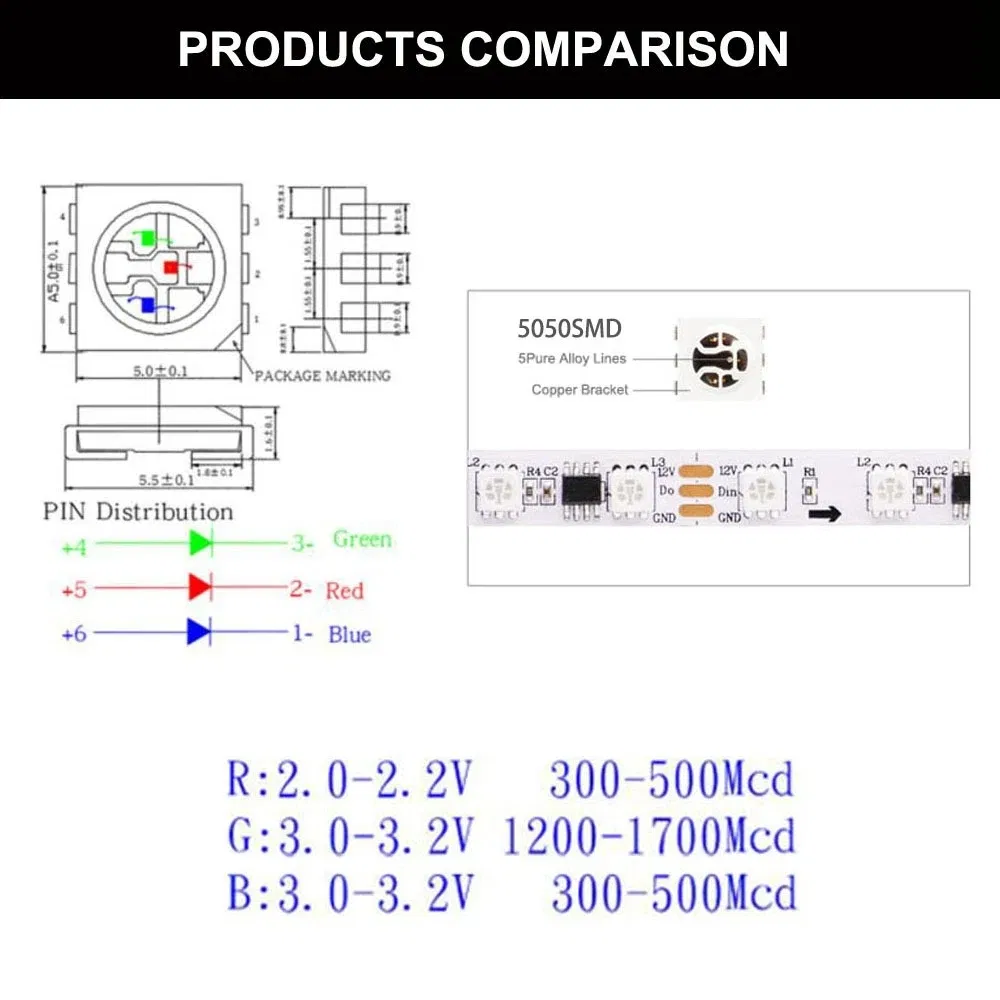

- LED Resource: WS2812B Led (5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)
- LED: Each Led is Separately Controlled
- IC Type: Improved Version WS2812 IC (Built Inside The 5050SMD RGB LED)
- Of IC: 1 IC Drives 1 Led Chip
- Pixels: 30/60/144/Meters
- Pitch: 16.6mm (1000/64)
- Grey Scale: 256
- Bits/Color: 8-Bits/Color
- FPC Width: 30Leds/m - 10mm | 60Leds/m - 10mm | 144Leds/m - 12mm
- FPC color: Black/White
- Protection Rate: IP30/ IP65 /IP67
- Colors: Full Color RGB, Dream Color Changing
- Cutable: Every LED is Cuttable

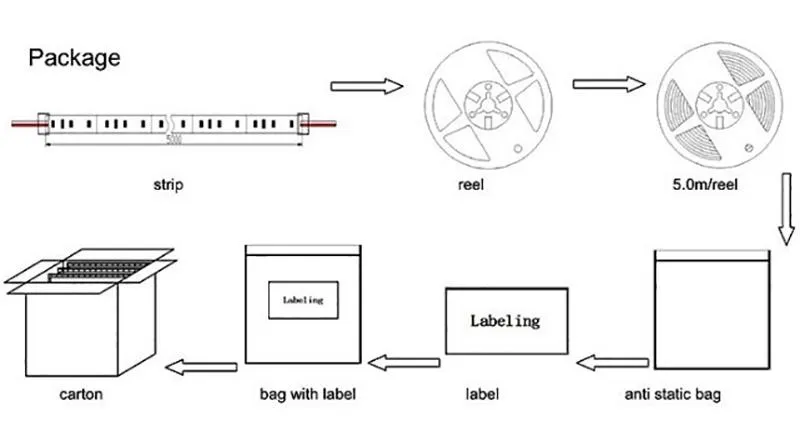

- Package: In Anti-Static Bag, IP30 IP65 With 3M Adhesive Tape On The Back (IP67 Without 3M Adhesive)

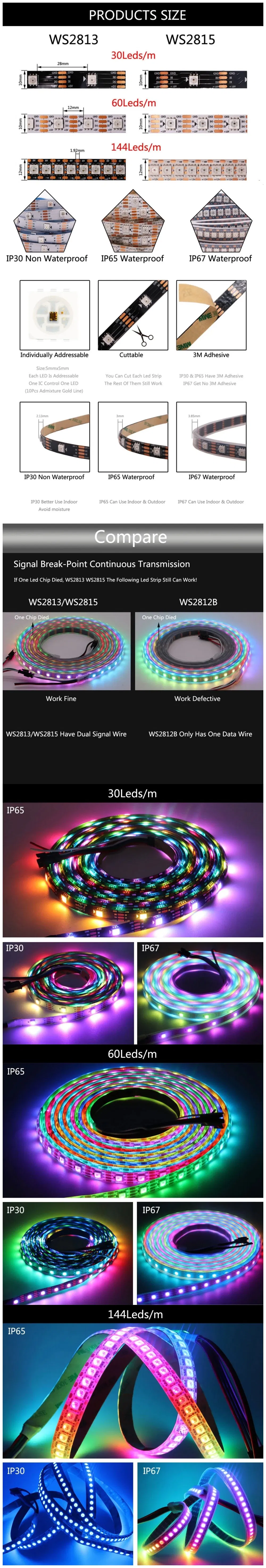

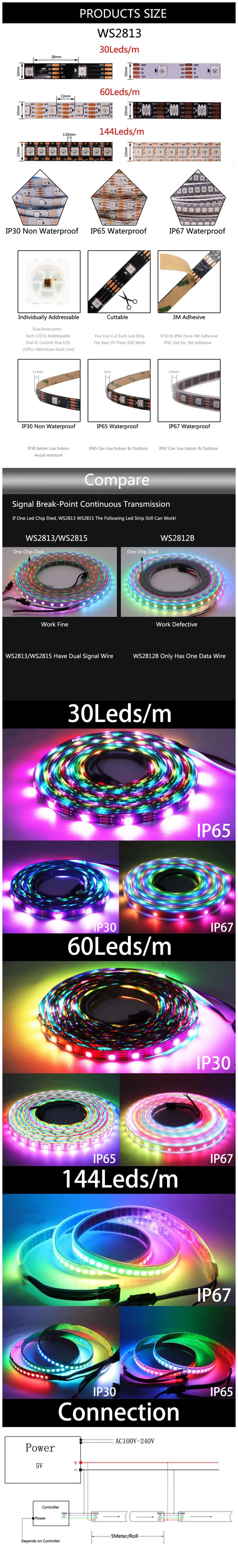

WS2813 LED Strip Specification
- Input Voltage: DC5V
- Power: 30 Leds/M - 9 Watt/Meter | 60 Leds/M - 18 Watt/Meter | 144 Leds/M - 43.2 Watt/Meter
- LED Resource: WS2813 led (5050 SMD RGB LED with built-in improved version of ws2811 ic)
- LED: Each LED is separately controlled
- IC Type: Improved version ws2813 IC (built inside the 5050 smd rgb led)
- Of IC: 1 IC Drives 1 led chip
- Pixels: 30Leds/60Leds/144Leds/meter
- Pitch: 16.6mm (1000/64)
- Grey Scale: 256
- Colors: Full color RGB, dream color changing
- Bits/Color: 8-Bits/Color
- FPC Color: BLACK / White
- FPC Width: 30 Leds/M - 10 MM | 60 Leds/M - 10 MM | 144 Leds/M - 12 MM
- Protection Rate: IP30 Non-Waterproof / IP65 Waterproof in Silicon Coating / IP67 Waterproof in Silicon Tube
- Cuttable: Every LED is cuttable
- Package: In anti-static bag, IP30 IP65 with 3M adhesive tape on the back (IP67 without 3M adhesive), each strip with one free male connector
- Working Temperature: -40 - 70 °C
- Storage Temperature: -50 - 80 °C
- Source Life: 50,000 hours
- Connector: 4PIN connector terminal pair (Red: 5V power, Green: Date line, Blue: standby date line, Black: GND)
- Recommend controllers: T-1000s, T-8000A, T-100K, T-200K, T-300K
WS2815 LED Strip Specification
- Input voltage: DC12V
- Power: 30leds/m - 9watt/meter | 60leds/m - 18watt/meter | 144leds/m - 34watt/meter
- LED resource: WS2815 led (5050 SMD RGB LED with built-in improved version of ws2811 ic)
- LED: Each LED is separately controlled
- IC Type: Improved Version WS2815 IC (built inside the 5050 smd rgb led)
- of IC: 1 IC drives 1 led chip
- Pixels: 30/60/144/meter
- Pitch: 16.6mm (1000/64)
- Grey scale: 256
- Bits/color: 8-bits/color
- FPC Width: 30leds/m - 10mm | 60leds/m - 10mm | 144leds/m - 12mm
- FPC color: White/Black PCB
- Protection rate: IP30/ IP65 /IP67
- Colors: Full color RGB, dream color changing
- Cuttable: every LED is cuttable
- Package: in anti-static bag, IP30 IP65 with 3M adhesive tape on the back (IP67 without 3M adhesive)
- Working temperature: -40 ~ 70 °C
- Storage temperature: -50 ~ 80 °C
- Source life: 50,000 hours
- Connector: 4PIN Connector terminal pair (Red: 12V power, Green: Date line, Blue: standby date line, Black: GND)
Frequently Asked Questions
Are you a factory or trading company?
We are a professional manufacturer of LED strip lights, COB strip lights, digital strip lights, and Neon lights. We offer factory-direct solutions.
How can you ensure high quality?
1. We have our own material production workshop and die factory for 10 years.
2. Workers are well trained before starting work.
3. 100% QC online and final inspection ensure no defective products leave our facility.
4. We carry multiple quality certifications such as ISO9001:2015, ISO14001:2015, SGS, etc.
If I need samples, do you support this?
We can supply you with samples for free, but delivery charges will be covered by the customer. Providing an International Express Account for Freight Collect is highly appreciated to avoid misunderstandings.
Can you provide custom services?
Yes, we have professional designers who can provide free customized designs for you. Please send us your specific requirements.
How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx, or TNT. It typically takes 3-5 days to arrive. Airline and sea shipping are also optional.
How long is your product warranty?
We offer a 2-5 year warranty on our products. During the warranty period, we will repair or even replace any quality-related failures for free.
