Basic Info
Emitting Color
2700K-6000K
Wire
2 Wires; 3 Wires; 4 Wires; 6 Wires
Certification
CE, EMC, LVD, RoHS
LED Chips Brand
Citizen; Luminus; CREE
Dimming
No/off; Triac; 0-10V; Dali
Housing Color
White; Black; Customed
Beam Angle
15°; 24°; 36°; 50°
LED Brand
Bridgelux/Luminus
Specification
Dia 85*L165mm
Production Capacity
30000PCS/Year
Packaging & Delivery
Package Size
9.50cm * 9.50cm * 27.00cm
Package Gross Weight
0.800kg
Product Description

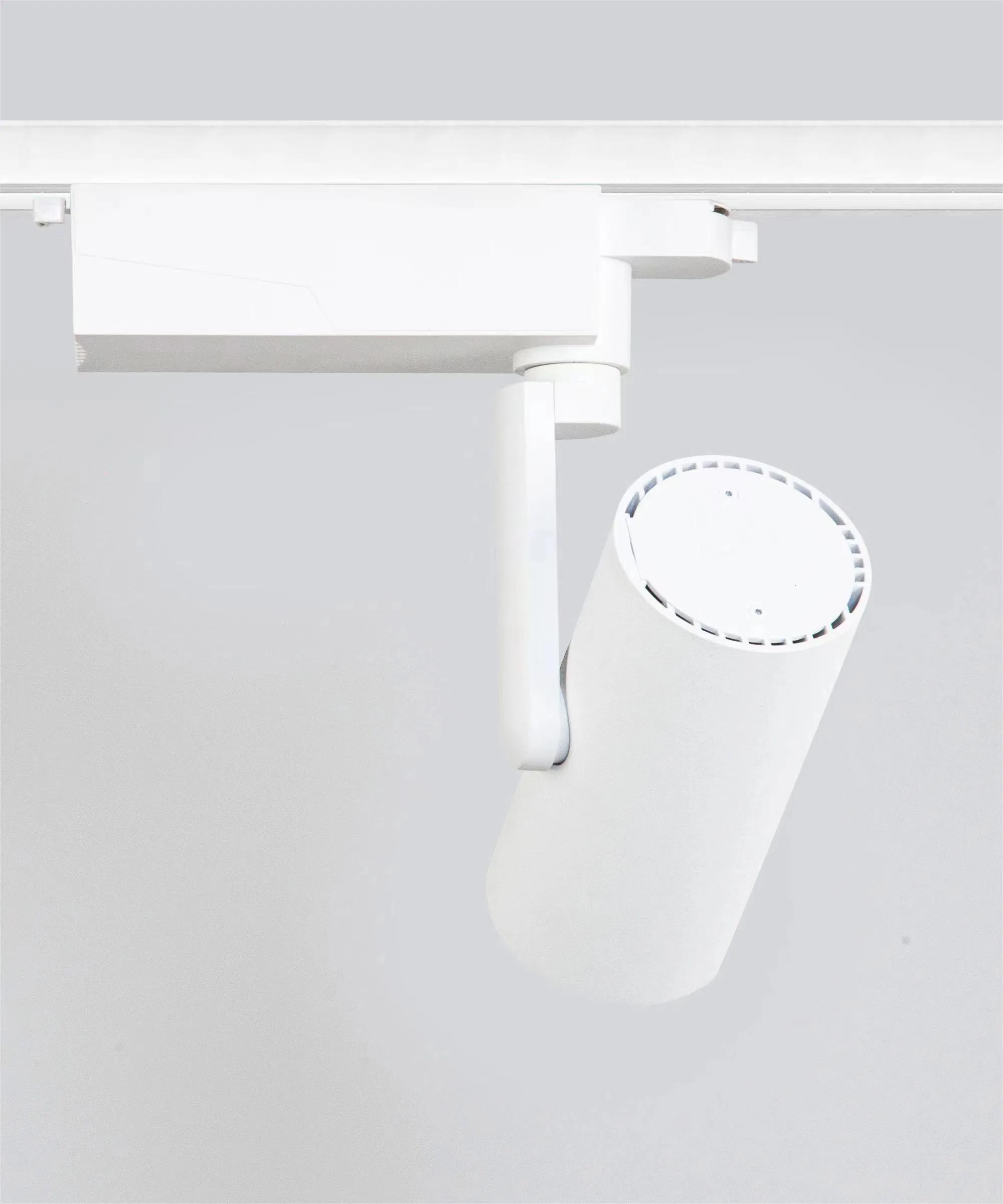

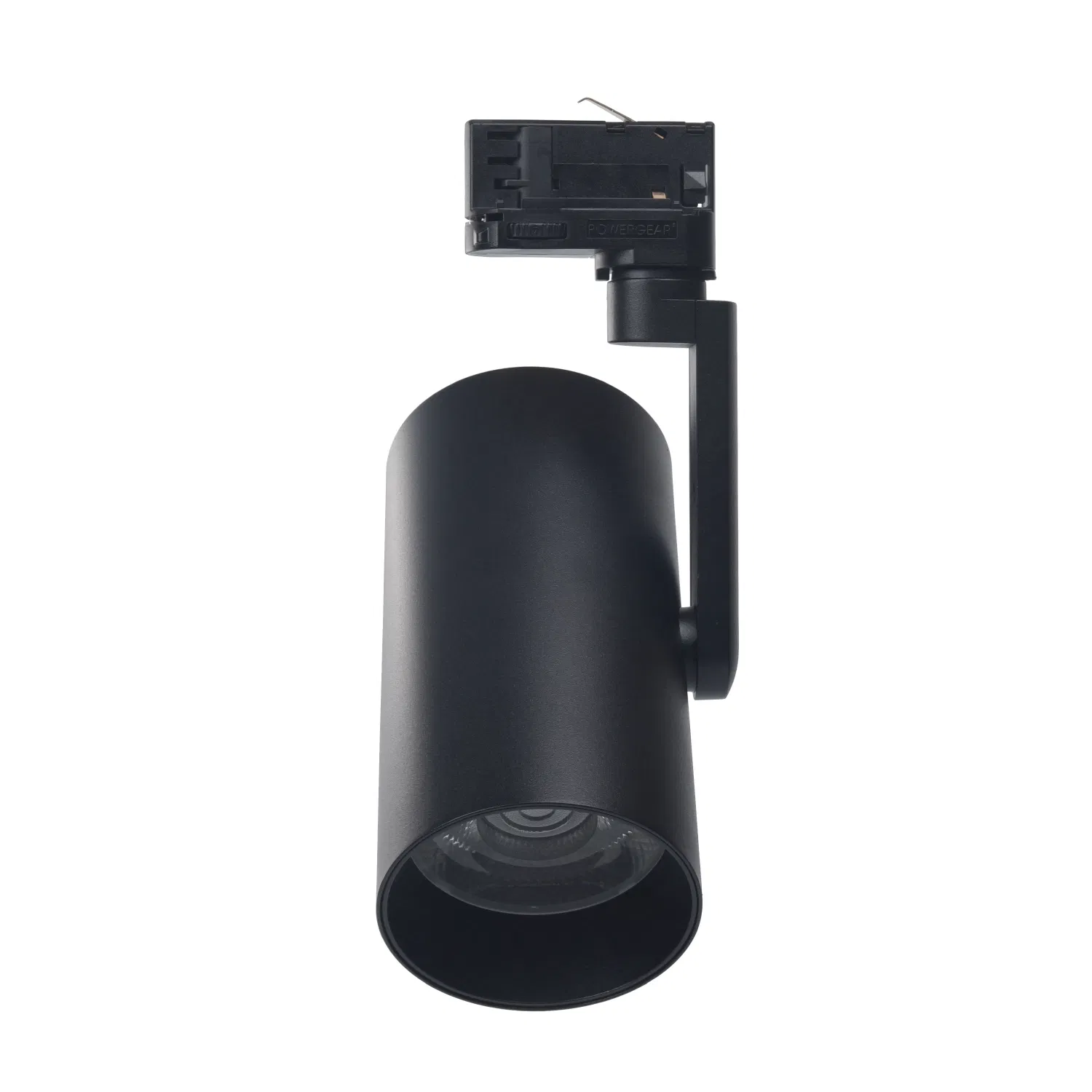

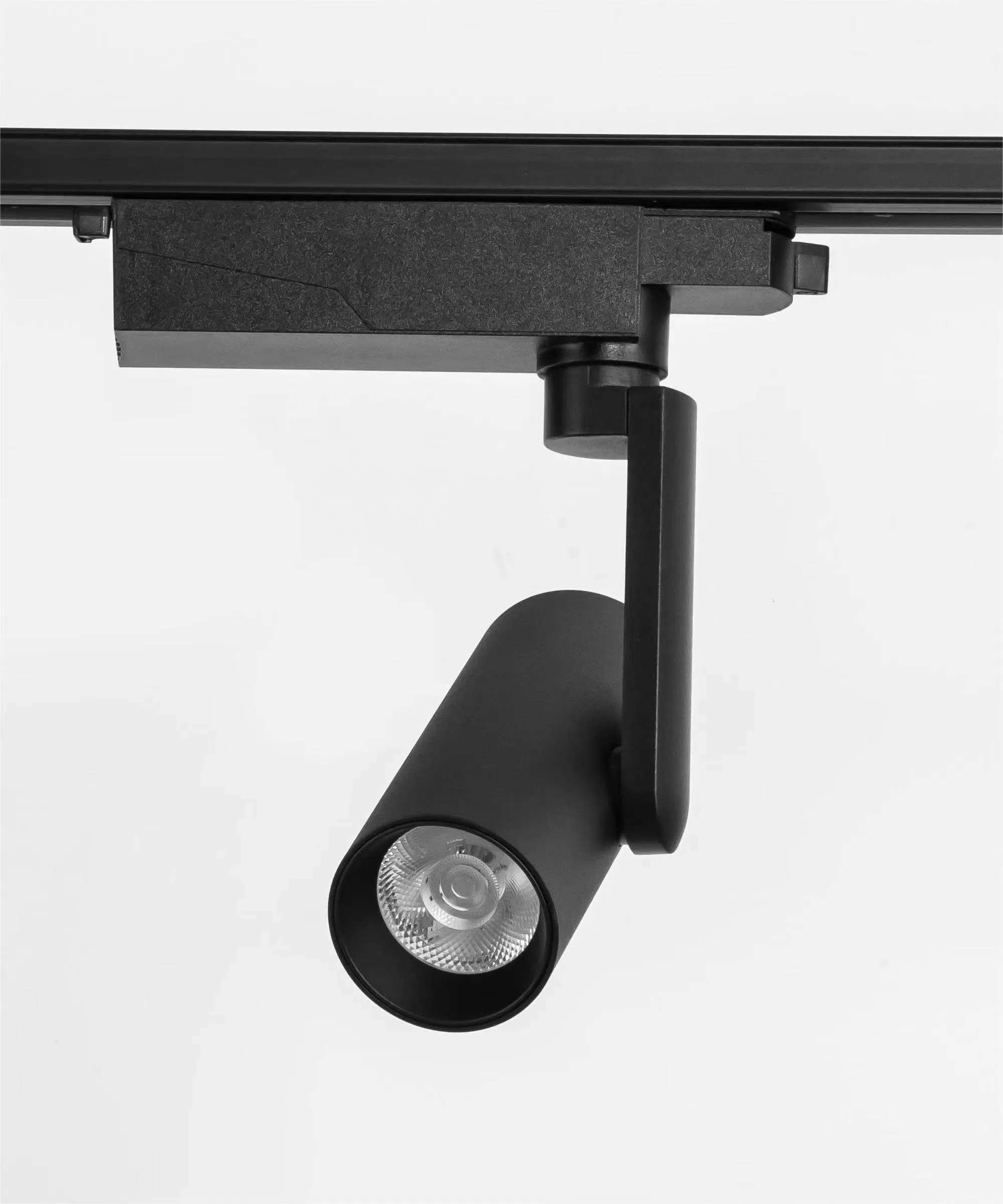

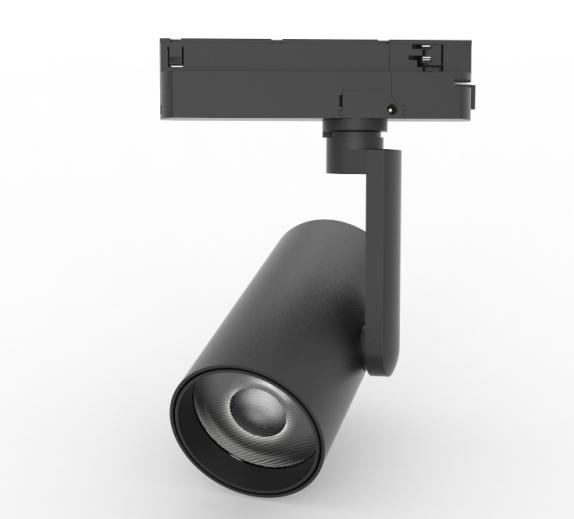

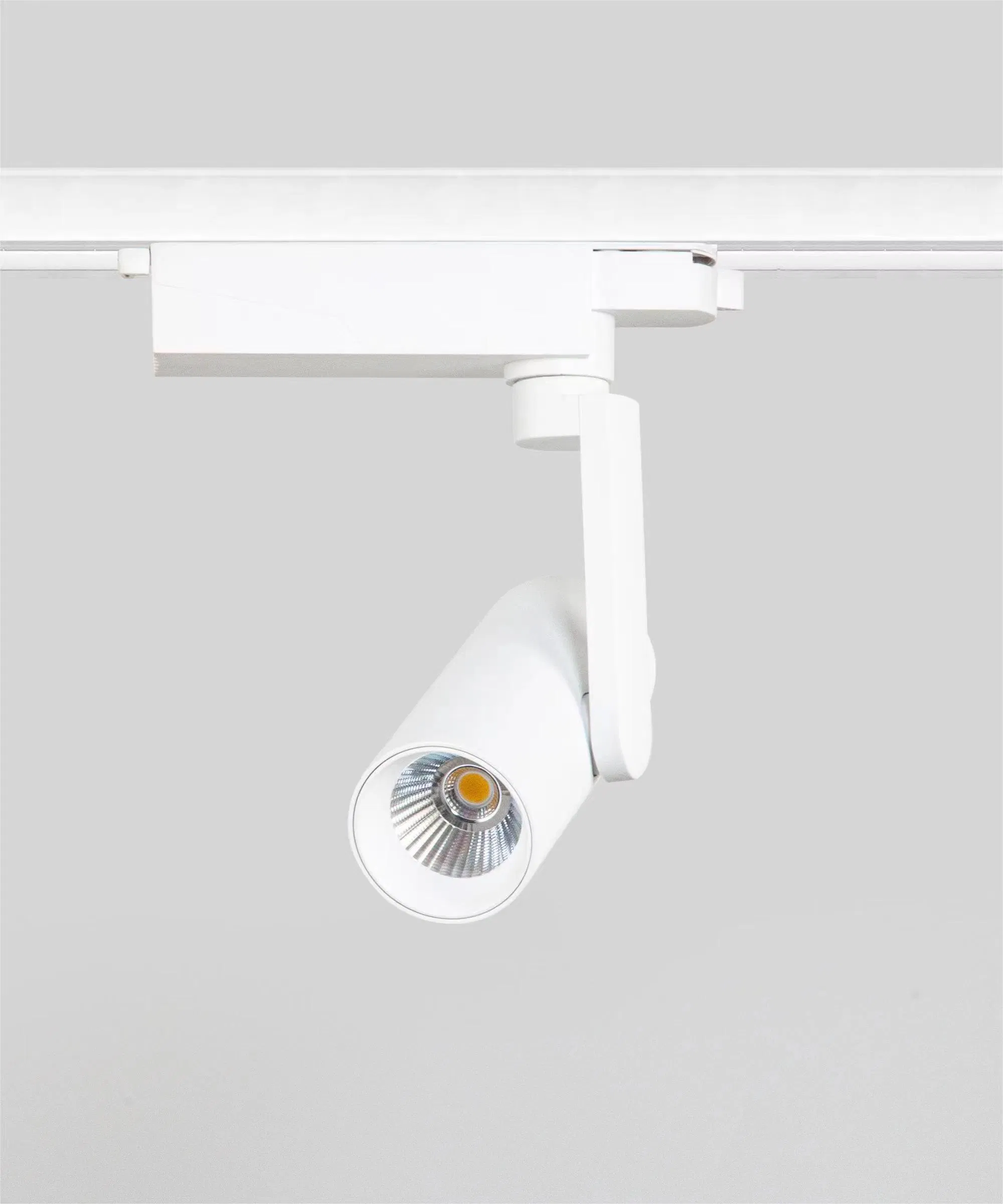

This track light is with driver built-in, which makes it look very compact. Most led track lights with build-in drivers on the market have the problem of poor heat dissipation. But this one uses a high-performance driver, which is specially developed for built-in track lights and has high-temperature resistance. Though the driver is the built-in type, it also ensures a long lifespan of 50000 hours and a real warranty 5 years.
This series of track lights adopts Tridonic, Lifud, and Boke driver for non-dim; HEP driver for 0/1-10V dimming; Rxpower driver for DALI dimming.

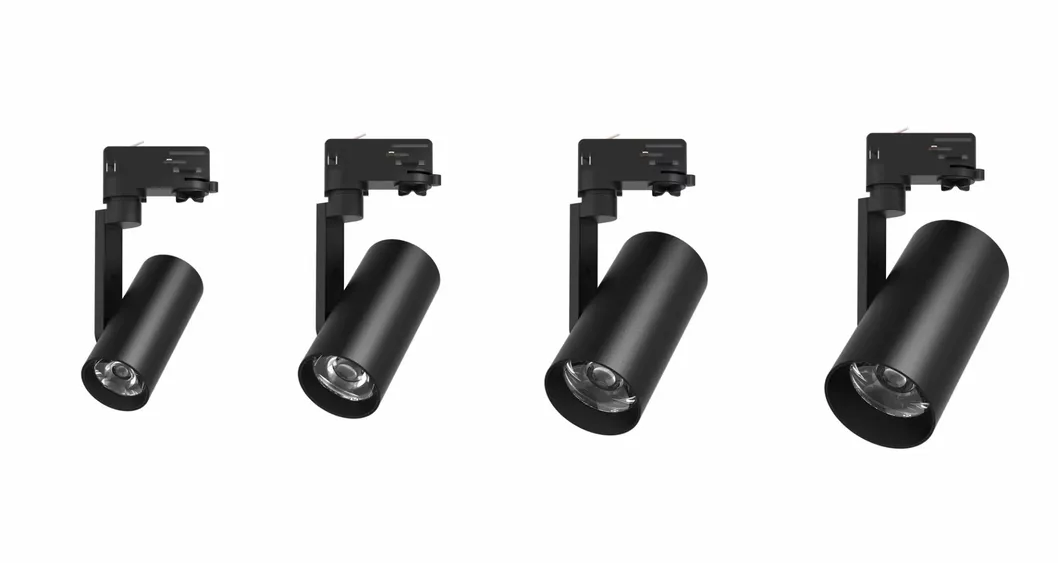

Specification of LED Tracklight ST-T**06
| Model |
ST-T1006 |
ST-T2006 |
ST-T3006 |
| Power (W) |
10W |
20W |
30W |
| Lumen Output |
1000-1300lm |
1900-2150lm |
3000-3500lm |
| Beam Angle |
15° / 24° / 36° / 50° |
15° / 24° / 36° / 50° |
15° / 24° / 36° / 50° |
| Size |
65*145mm |
75*155mm |
85*165mm |
| LED Brand |
Bridgelux / Citizen / Luminus / CREE |
| Color Temperature (CCT) |
2700K / 3000K / 4000K / 5000K / 6000K |
| Rendering Index (CRI) |
Ra>90 / Ra>95 / Ra>97 |
| Color Consistency (SDCM) |
<3 |
| Lumen Maintenance Factor (LLMF) |
>80% |
| Driver Brand |
Philips / Osram / TCI / Powergear |
| PF |
≥0.95 |
| Flicker-free |
Yes |
| Dimmable |
non-dim / Triac-dim / 0-10V dim / DALI dim |
| Track |
2/3 wires (single phase) / 4 wires 3 phase / 6 wires |
| Material (Heatsink) |
cold forging #1070 aluminum |
Notes & Options:
- DALI dimming is available with 4 wires and 6 wires.
- Zoomable beam angle 15-60° is available.
- Turnable CCT by DIP switch is available.
Advantages of LED Tracklight ST-T**06

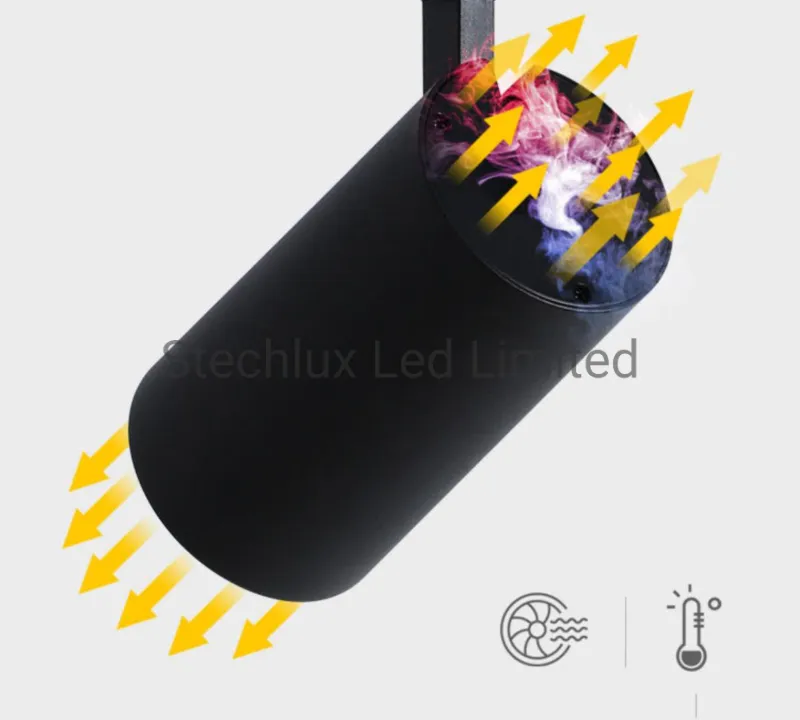

Cold forging aluminum #1070
The lamp body (heatsink) of this track light uses purer aluminum #1070 by the technology of cold forging. The cooling effect of cold forging aluminum is 30% higher than that of #6063 profile aluminum (extrusion aluminum) and 2 times better than that of die ADC12 aluminum by casting.
Thermal conductivity of different aluminum materials:
- Cold forging aluminum (#1070): 226 w/m.k
- Profile aluminum (#6063): 180 w/m.k
- Die casting aluminum (#ADC12): 98 w/m.k

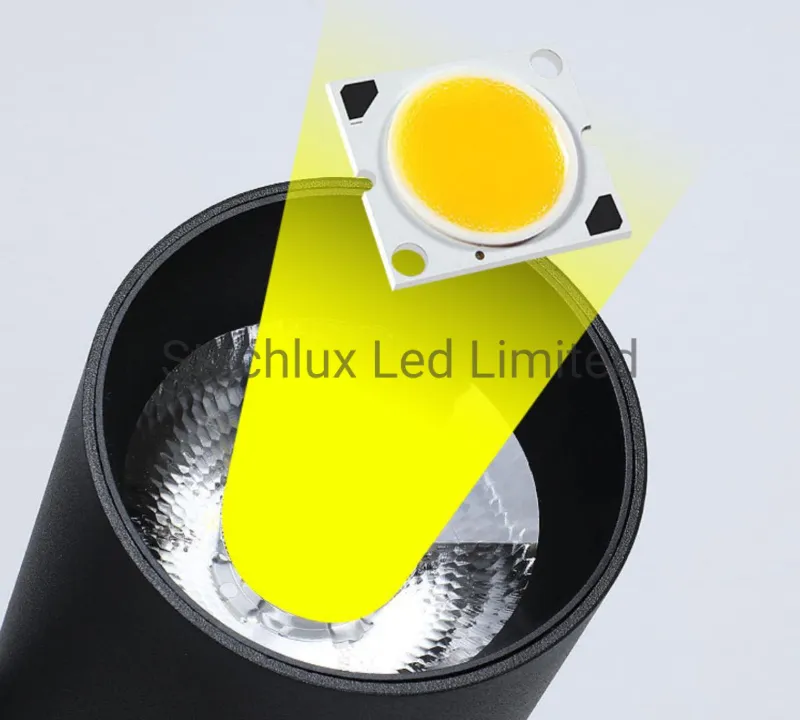

LED chip with high CRI & high light efficiency
We use the original LED chip Citizen or Luminus COB for this track light. They are not only high CRI90 or 95 but also high light efficiency. Higher CRI can better restore the original color of the irradiated object. And the higher the light efficiency, the more energy saving. For example, the lm/W of 30W can be 137lm/W at 3000K CRI90.

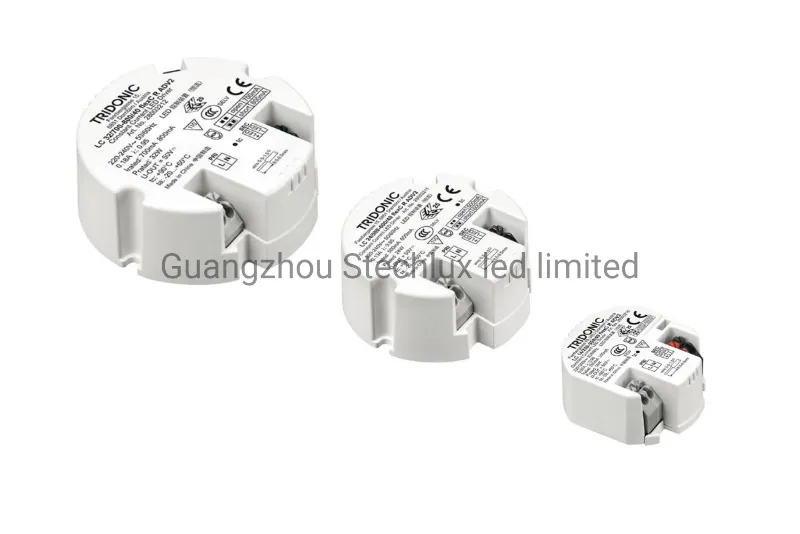

Glued type driver with high-temperature resistance; PF>0.95 & flicker-free
The driver of this track light is built-in the lamp body, which requires that the driver must be glued type so that it can have high-temperature resistance. The Tridonic driver we use for this track light has Tc >90ºC. It is the best option for this kind of track light. Other brands are optional like Lifud, Boke, HEP, etc.

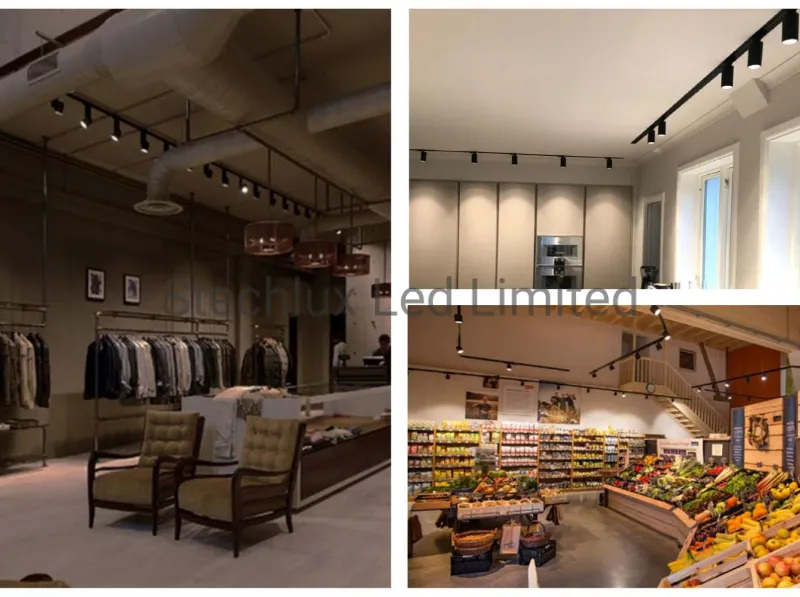

Applications for Reference
This series of track lights are perfectly suitable for use in high-end hotels, villas, and mansions. It provides a comfortable and healthy lighting space.
Frequently Asked Questions
Can I have a sample order?
Yes, we welcome sample order for quality check. Mixed samples are acceptable.
Do you have any MOQ required?
Low MOQ, but different prices with different quantities. 1pc for sample checking is available.
Is it OK to print my logo on the product?
Yes, please inform us before our production and provide the logo file with the editable format.
What about the lead time?
About 3-5 days for samples, 7-15 days for formal order.
Do you offer guarantee for the products?
Yes, we offer 3-5 years warranty for our products. We can sign the Warranty Statement.
How to deal with the faulty?
Our products are produced in a strict quality control system and the defective rate is under 0.3%. During the warranty period, we will be responsible for maintenance or provide new products for replacement.
