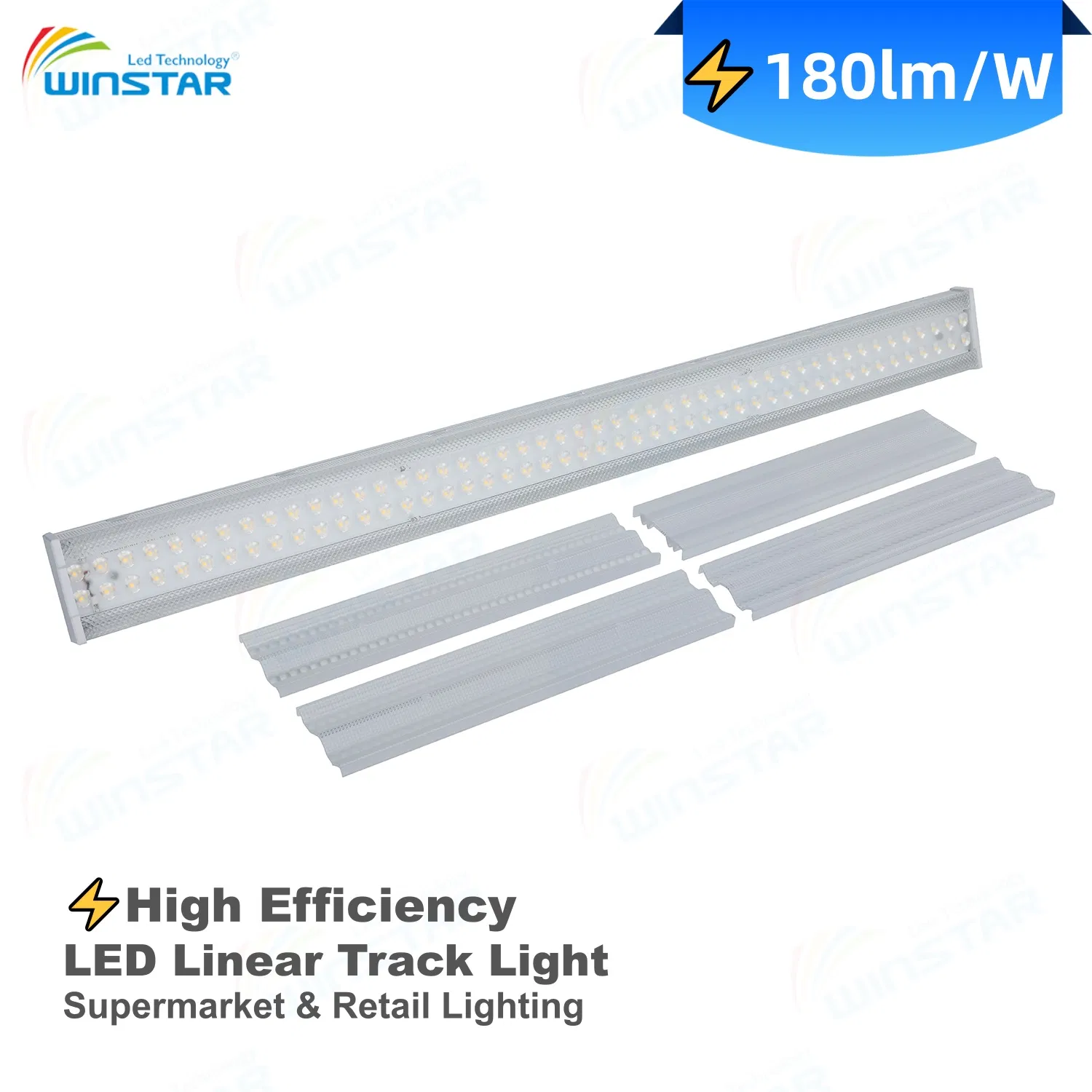

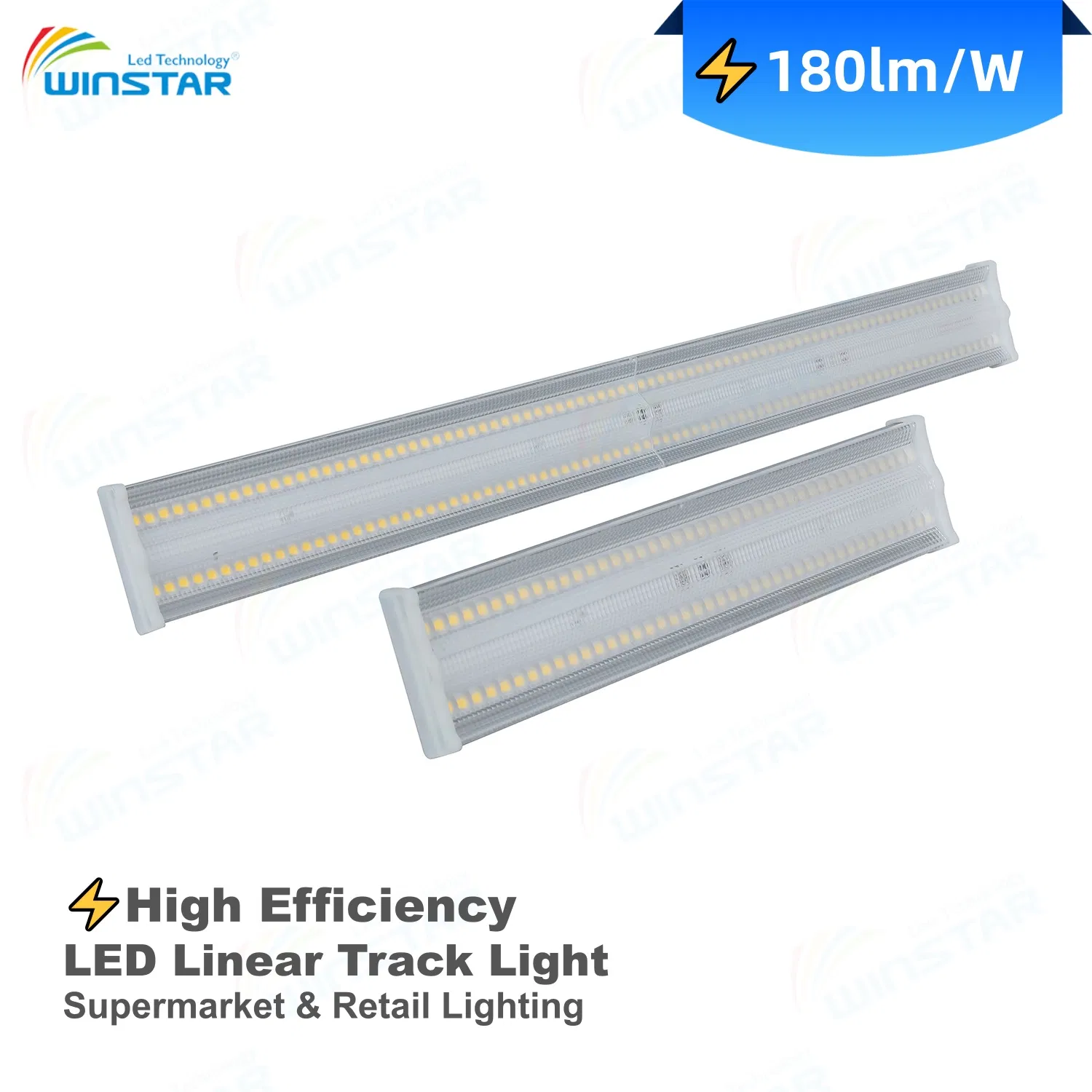

Energy Saving LED Linear Track Lighting System 180lm/W for Supermarket Aisle & Shelf 38W 6840lm CE Certified 60 90 Degree Beam Angle 5 Years Warranty Light
1 / 5
Energy Saving LED Linear Track Lighting System 180lm/W for Supermarket Aisle & Shelf 38W 6840lm CE Certified 60 90 Degree Beam Angle 5 Years Warranty Light
Energy Saving LED Linear Track Lighting System 180lm/W for Supermarket Aisle & Shelf 38W 6840lm CE Certified | 60 90 Degree Beam Angle 5 Years Warranty Light
160-180LM/W | 30W 38W 60W 75W 80W | 3000K-6500K

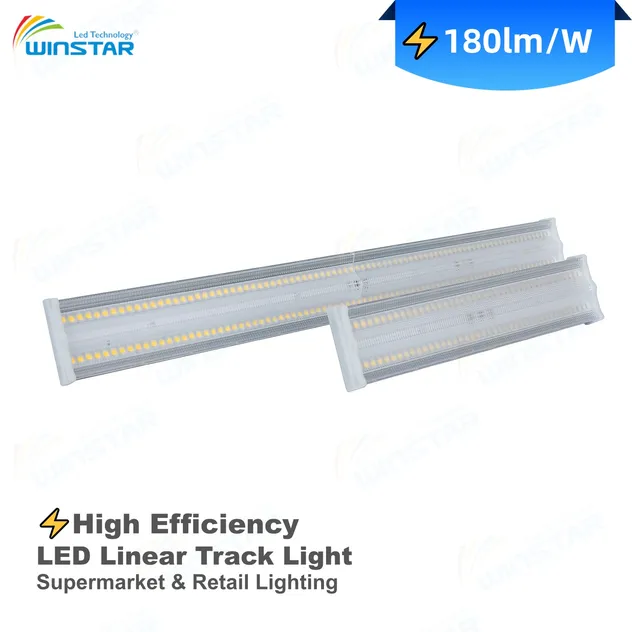

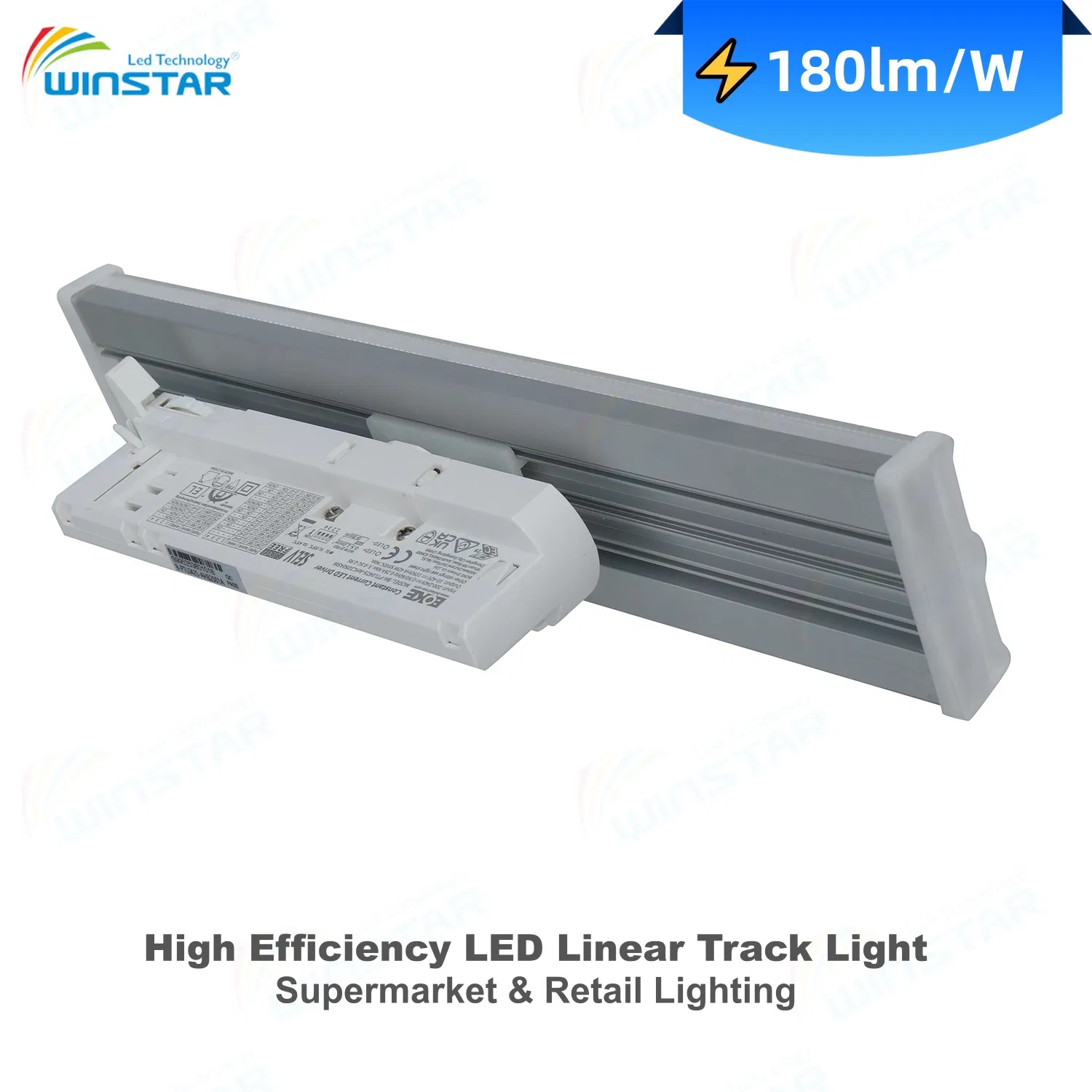

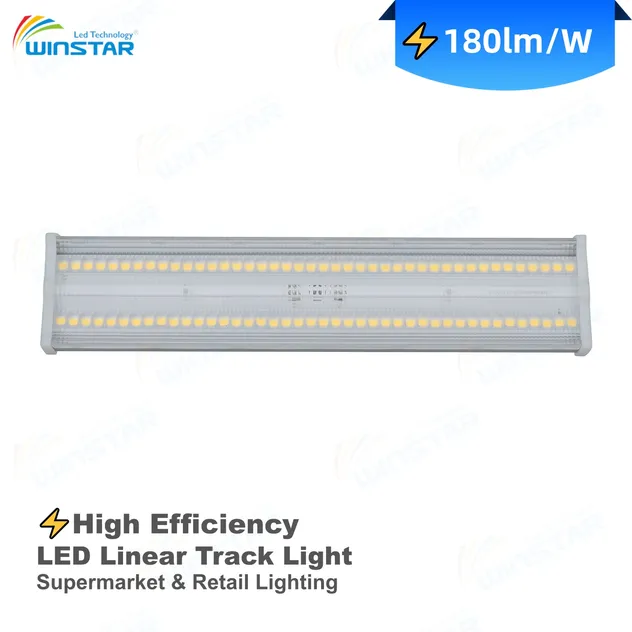

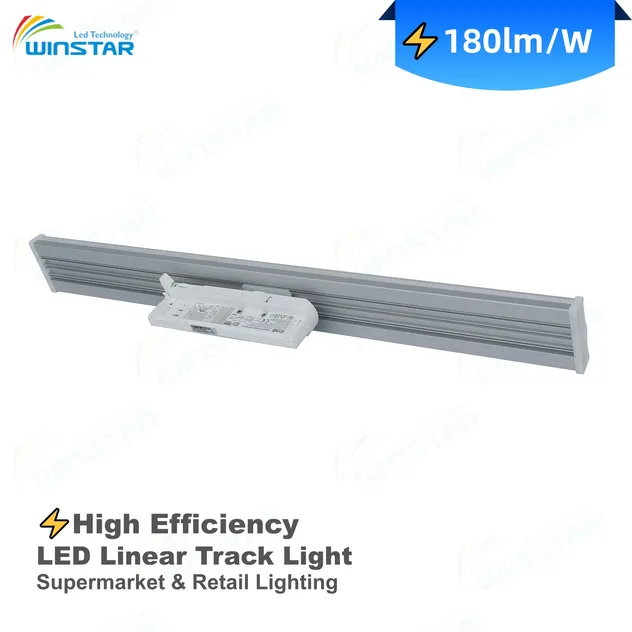

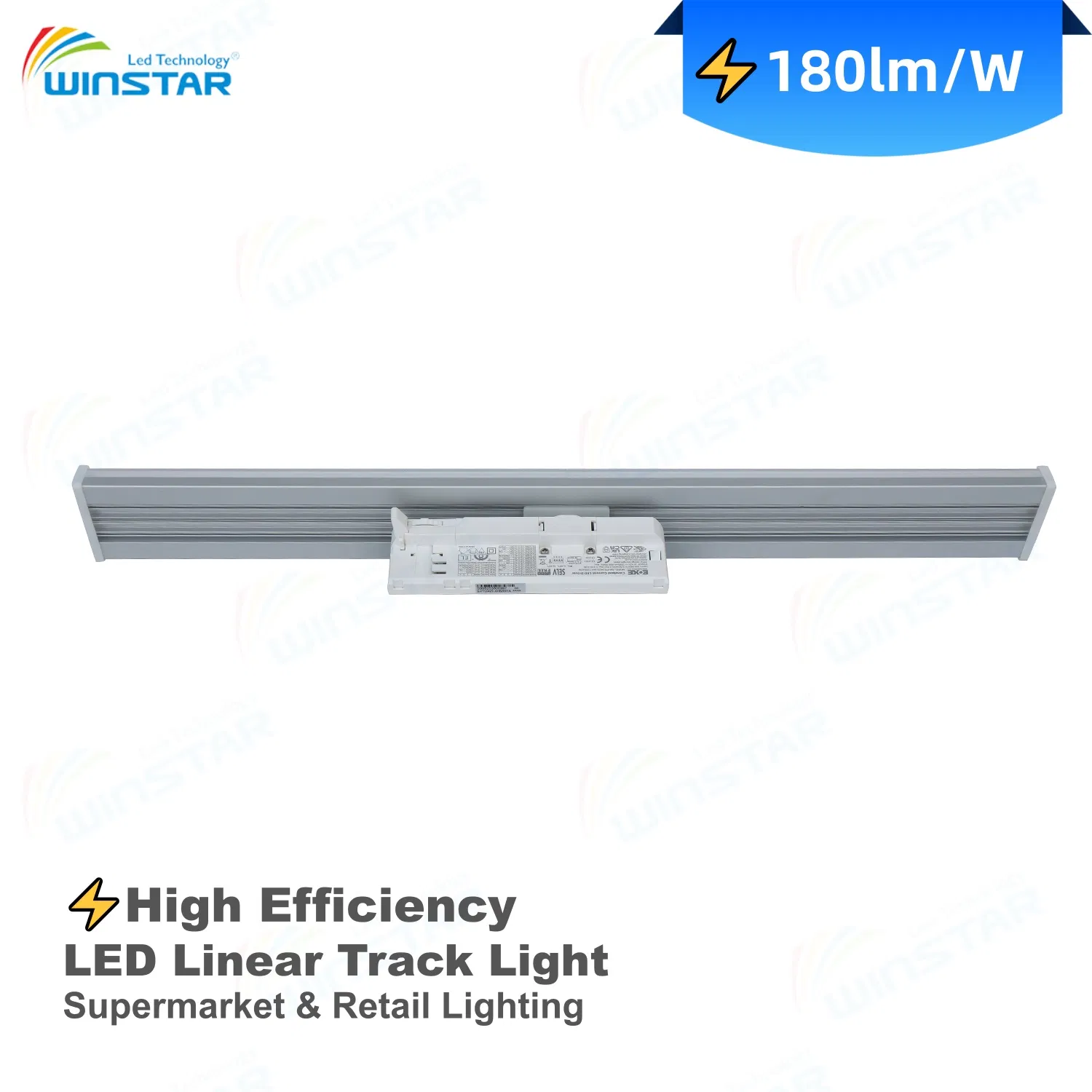

LED Linear Track Light | WS-HL Series
Professional Linear Lighting Solution for Modern Retail Spaces
The WS-HL Series is a high-performance LED linear track light system engineered specifically for supermarkets, clothing stores, retail shops, and commercial display spaces.
We offer two distinct performance tiers to match your project requirements and budget:
Two Series to Meet Every Budget & Performance Need
Series
Model length
Efficacy
Power range(OEM)
Best For

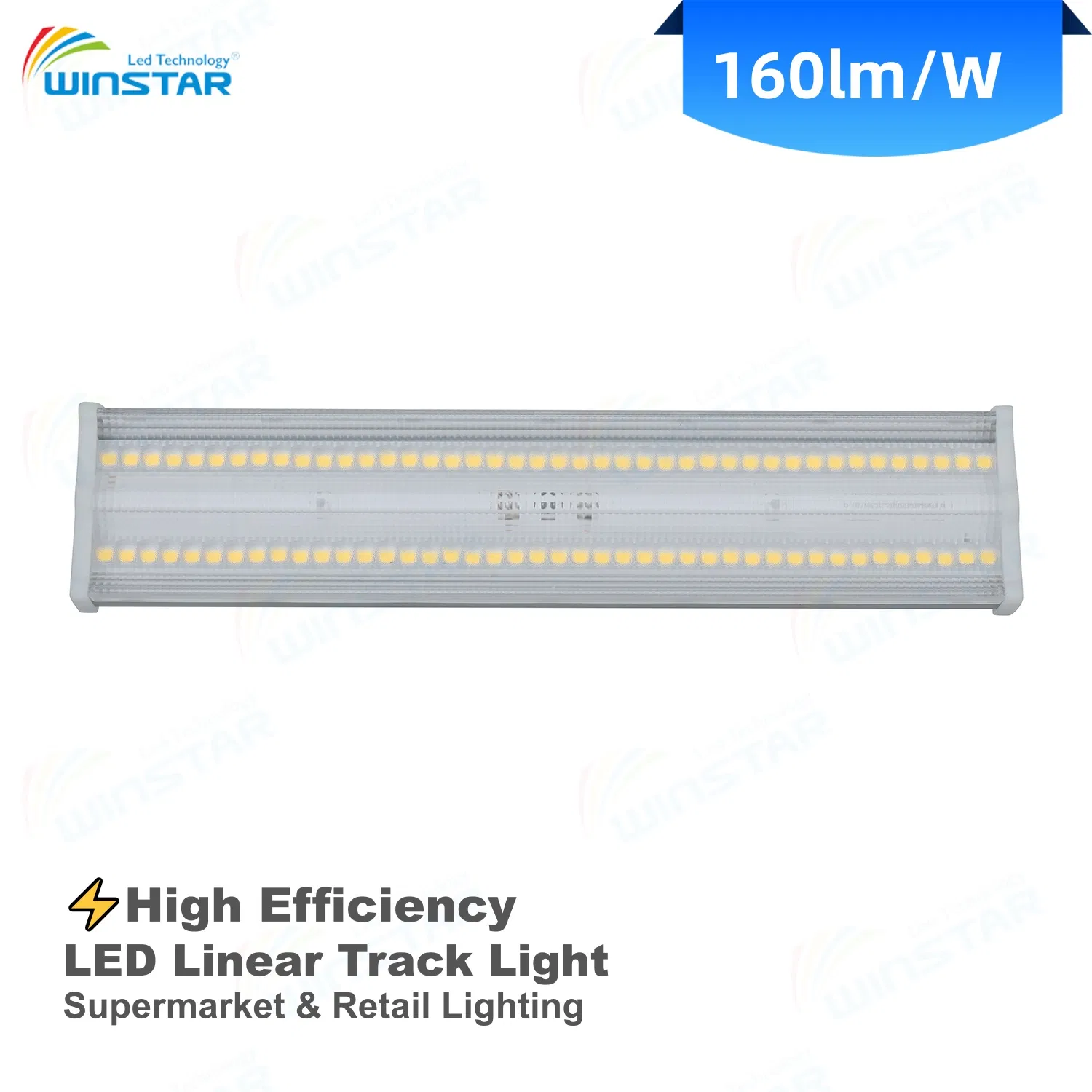

Standard Series
600/1200/1500mm
160lm/W
30/60/80W
Cost-effective mainstream retail projects
TYPE C Series
750/1500mm
180lm/W
38/75W
Premium projects demanding maximum energy savings
Both series feature replaceable modular design and professional optical lens technology, delivering superior illumination quality while dramatically reducing operational costs.
Whether you are illuminating fresh produce aisles, highlighting fashion mannequins, or creating an inviting ambiance in a boutique store, the WS-HL Series offers the flexibility, efficiency, and reliability your project demands.
Key Advantages at a Glance
Dual Efficacy Options — 160 lm/W (Standard) or 180 lm/W (TYPE C)
Why Are Your Clients Still Paying for 70W When 30W Looks This Good?
Traditional track lighting in supermarkets and clothing stores faces three critical pain points:
1) High Electricity Bills: Old halogen or metal halide track lights consume 70W-100W just to produce adequate brightness.
2) High Maintenance Costs: When a traditional LED driver fails, the entire linear fixture must be uninstalled and replaced.
3) Poor Light Control: Inferior optical designs create uneven illumination, harsh hot spots on clothing, and fail to accurately render the true colors of fresh food and fabrics.
The WS-HL Series is the professional upgrade your project needs.
Key Selling Points: Where Performance Meets Savings
on-off/ Bluetooth CASAMBI / DALI / 0-10V (Customizable)
Not Available
Ready for Smart Building Integration
The Efficiency Calculator: Why Upgrade?
Scenario: A clothing store with 50 track lights, running 12 hours/day. Old Solution: 50pcs x 70W Halogen = 3.5 kW per hour. Standard Solution: 50pcs x 30W LED = 1.5 kW per hour. TYPE C Solution: 50pcs x 38W LED = 1.9 kW per hour (with even higher brightness output). Annual Savings: Approx. $1,500 - $2,000 USD in electricity (varies by region).
Specification
Series
Model No.
Dimensions (mm)
Power(/OEM)
Lumen (lm)
Efficacy
CRI
CCT
Standard
WS-HL-06L30-B
600 x 66 x 50
30W
4800 lm
160 lm/W
Ra≥80
3000/4000/5000/6500K
Standard
WS-HL-12L60-B
1200 x 66 x 50
60W
9600 lm
160 lm/W
Ra≥80
Standard
WS-HL-15L80-B
1500 x 66 x 50
80W
12800 lm
160 lm/W
Ra≥80
TYPE C
WS-HL-075L30-B
750 x 66 x 50
38W
6840 lm
180 lm/W
Ra≥80
TYPE C
WS-HL-150L60-B
1500 x 66 x 50
75W
13500 lm
180 lm/W
Ra≥80
Lens:
High-transmittance Optical Lens for precise light distribution
Standard:
Single Fixed CCT, power, on-off
Customization (MOQ applies):
Bluetooth CASAMBI/ DALI / 0-10V
Applications
• For Supermarkets & Grocery:
(Standard 30W/Type C 38W, Beam 60Deg, 4000K/6000K) • For Fashion & Clothing Stores:
(Standard 30W/Type C 38W, 3000K) • For Large Commercial Spaces:
(Standard 60/80W, Type C 75W, 1200mm/1500mm)
Beam Options:
60 Degree: Accent lighting for mannequins and high-value displays. 90 Degree: General aisle lighting for supermarkets. Single Polarization: Directs light towards shelves, reducing glare in customer walking paths. Double Polarization: Balanced illumination for both sides of an aisle.

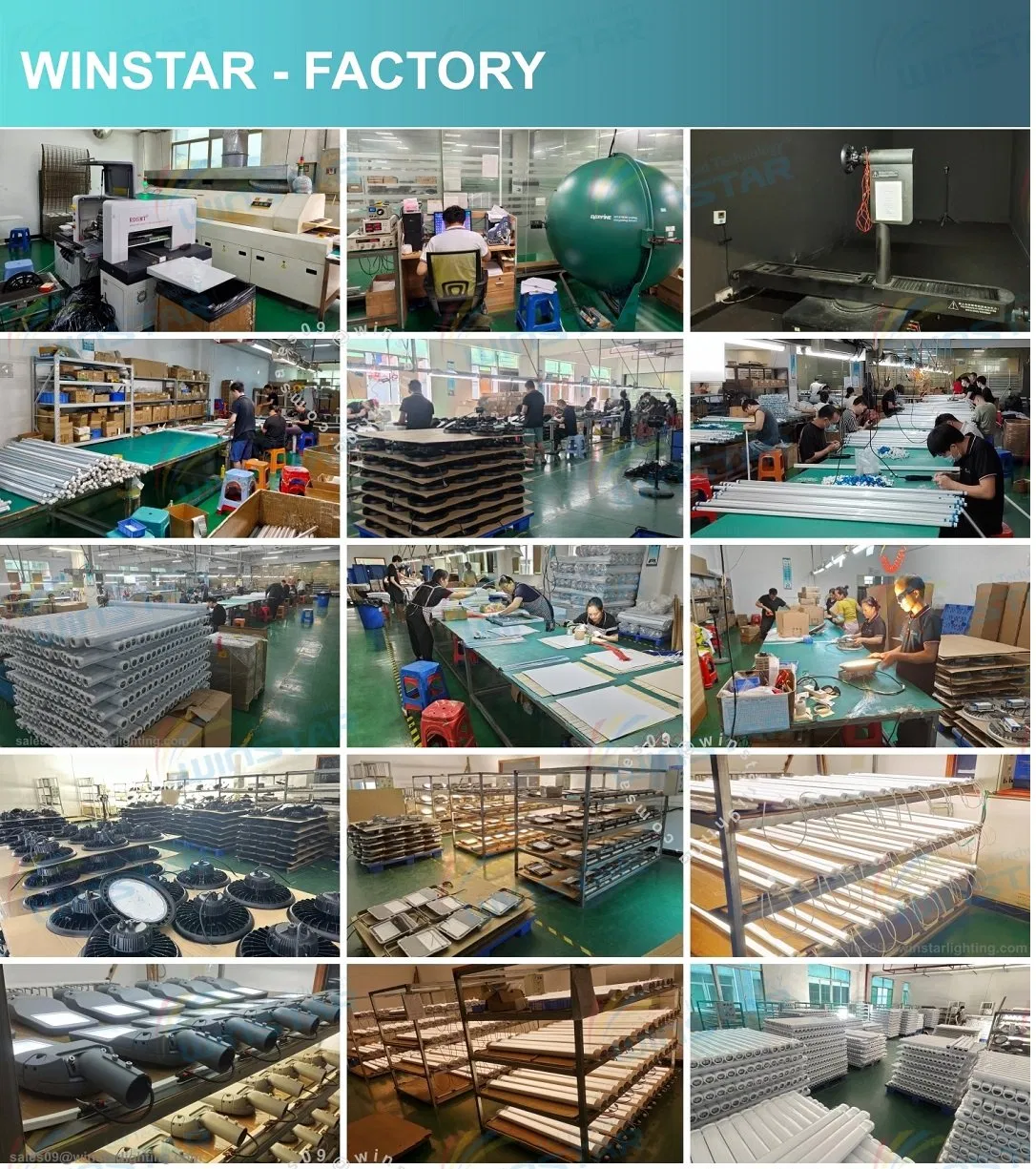

Production & Facilities
After Sales Service
Ready to Upgrade? Choose Your Series.
Whether you need the cost-effective Standard Series (160 lm/W) or the ultra-premium TYPE C Series (180 lm/W), we have the right solution for your project.
Why Choose Us?
Dual Series Options — Standard vs. TYPE C to fit any budget
Factory Direct Pricing — Competitive wholesale rates with volume discounts
Fast Shipping on Standard Models — 20-25 days
OEM/ODM Service — Custom length, color temperature, smart control, and logo printing
Free Lighting Design Support — Send your floor plan for a professional Dialux simulation
Smart Control Customization — Bluetooth CASAMBI, DALI, 0-10V available for bulk orders
>>> Tell Us Your Requirements:
• Standard Series (160 lm/W) or TYPE C Series (180 lm/W)?
• Length required: 600 / 750 / 1200 / 1500 mm?
• Color Temperature: 3000K / 4000K / 5000K / 6500K?
• Beam Angle: 60° / 90° / Single Polarization / Double Polarization?
• Smart Control: CASAMBI / DALI / 0-10V / None?
Contact Us Today for a Wholesale Quotation!
*Keywords: LED Linear Track Light, 160lm/W Track Light, 180lm/W High Efficacy Track Light, Supermarket Lighting, Retail Shop Lighting, Replaceable LED Module, TYPE C Linear Light, CASAMBI Linear Light, Track Light*
FAQ
Q1: Are you a factory or trading company?
A1: We are a 100% factory, not a trading company, specializing in professional LED lighting design and production.
Q2: How do you ensure the quality of your products?
A2: We implement four strict QC processes: 1. Raw material inspection; 2. Mid-production checks; 3. Post-aging test QC; 4. Final packaged product inspection.
Q3: What if quality issues arise during the warranty period?
A3: Please provide photo or video proof of the issue, and we will replace the items for free in your next shipment.
Q4: Do you accept OEM or ODM orders?
A4: Yes, OEM and ODM services are fully accepted. We can customize length, color temperature, smart control systems, and place your logo on the product/package.
Q5: What is your MOQ? Can I order a small quantity for testing first?
A5: We welcome sample orders and trial orders to build initial trust. Please contact us to discuss the quantity needs for your specific project.
Q6: What is the estimated lead time for sample and mass production?
A6: Samples are typically finished within 5-7 days. Mass production lead time is around 20-25 days depending on the final order quantity.
