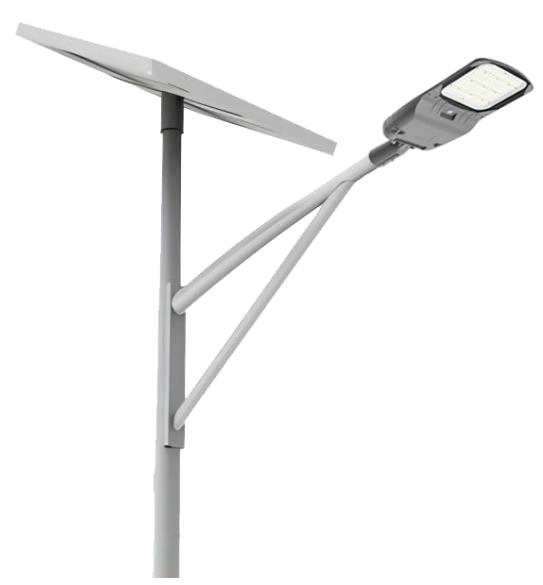

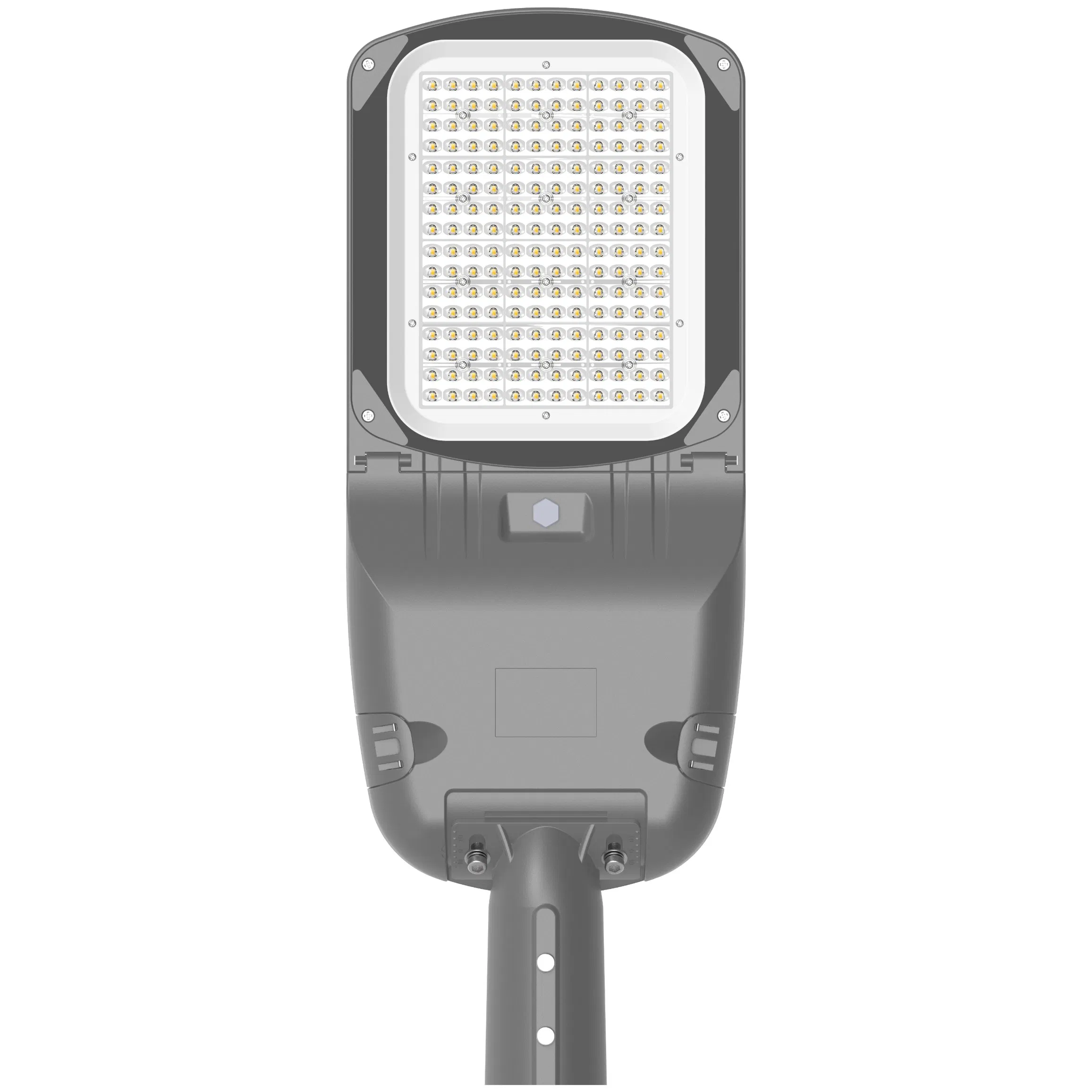

80W Outdoor LED Street Light Solar Semi Integrated Street Lights for Municipal Outdoor Lighting Project

1 / 5

80W Outdoor LED Street Light Solar Semi Integrated Street Lights for Municipal Outdoor Lighting Project

Customization:	Available
Power Supply:	AC
Color Temperature:	3000K 4000K 5000K 5700K 6500K

Send Inquiry

Product Description

Overview & Basic Info

Model NO.	ELS-ST15
Lamp Body Material	Aluminum
Power	50W 60W 70W 100W 120W 150W 200W 240W 300W
Application	Square, Highway, Garden, Parking Lot, School
IP Rating	IP66
Certification	CE, EMC, RoHS
Input Voltage	100-277VAC
With Light Source	With Light Source
LED Chips Brand	Bridgelux
Driver Brand	Meanwell / Inventronics
LED Life Span	>100, 000 Hours

Power Factor	>0.95
Ik Grade	Ik10
Housing Color	Dark Grey
Surge Protection	6kv
CRI	>70 />80/>90 Ra
Beam Angle	15065° (T2)/15080°(T3)
Working Temp	-30~+50℃
Warranty	5 Years / 10 Years
Frequency	50-60Hz
Transport Package	Carton
HS Code	940540
Production Capacity	8000 Pieces / Month

Product Description

Features:

Inbuilt AC/DC Hybrid MPPT charge controller
Solar Panel: High Efficiency Monocrystalline Silicon 36V, 25 Years lifetime
Battery Type: LiFePO4 Battery 25.6V, deep cycle more than 4500 times
Solar Charging Time: 6 hours in bright sunlight
Lighting Mode: Dusk to dawn + Timer control+ remote control; 12 hours (or customized) lighting time every night

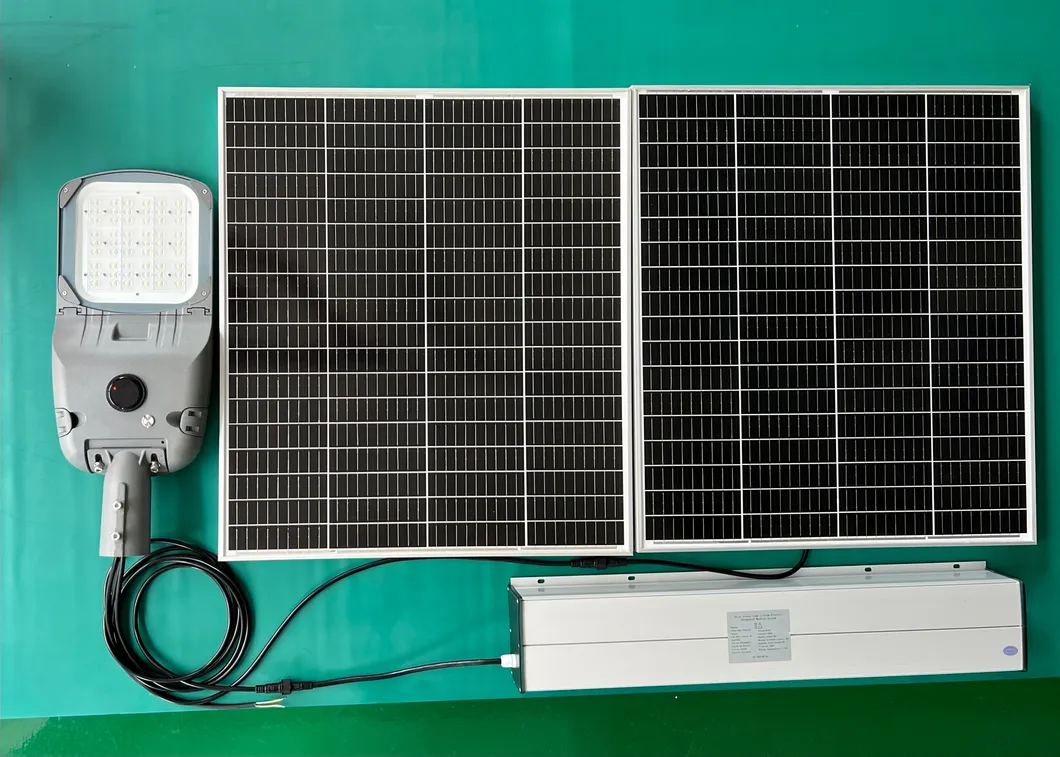

Solar Semi Integrated Street Lights Diagram

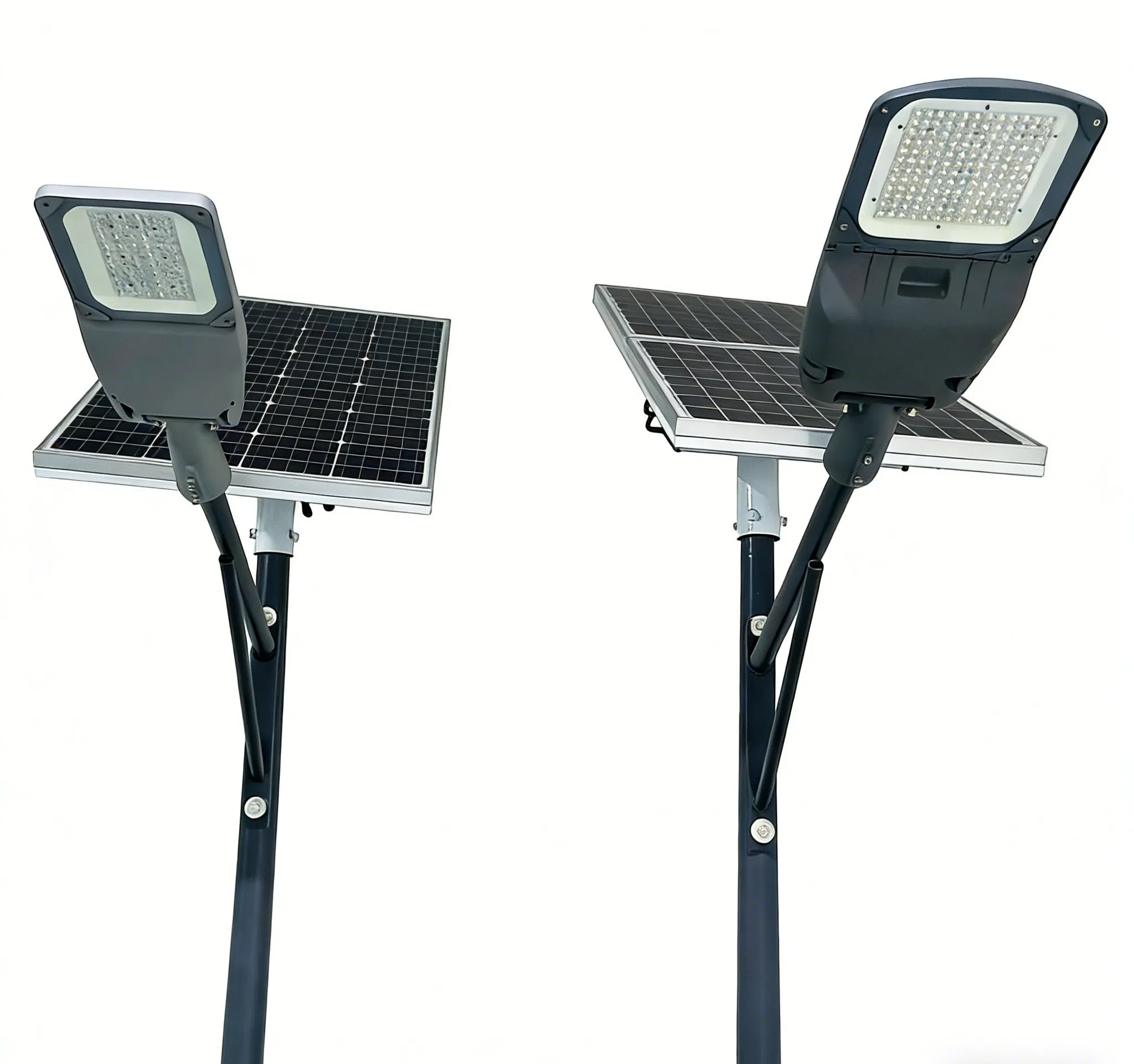

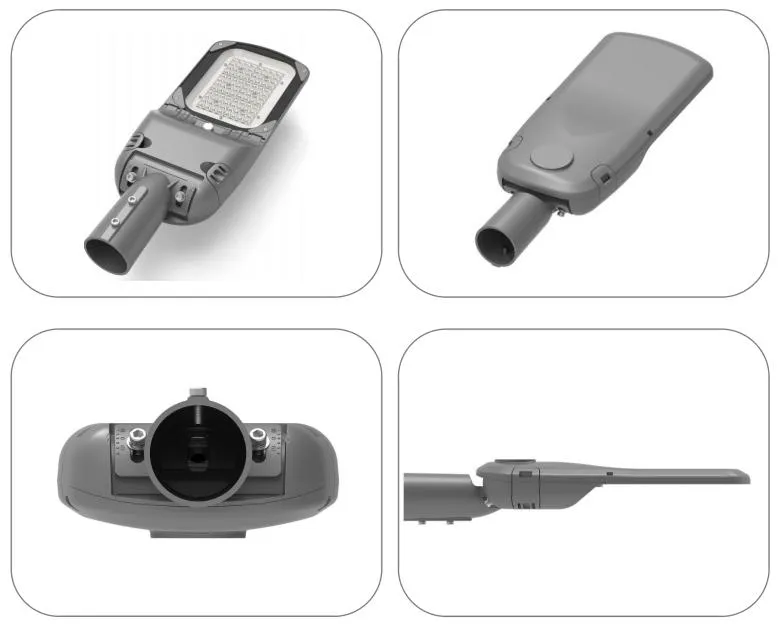

Solar Semi Integrated Street Lights Architecture

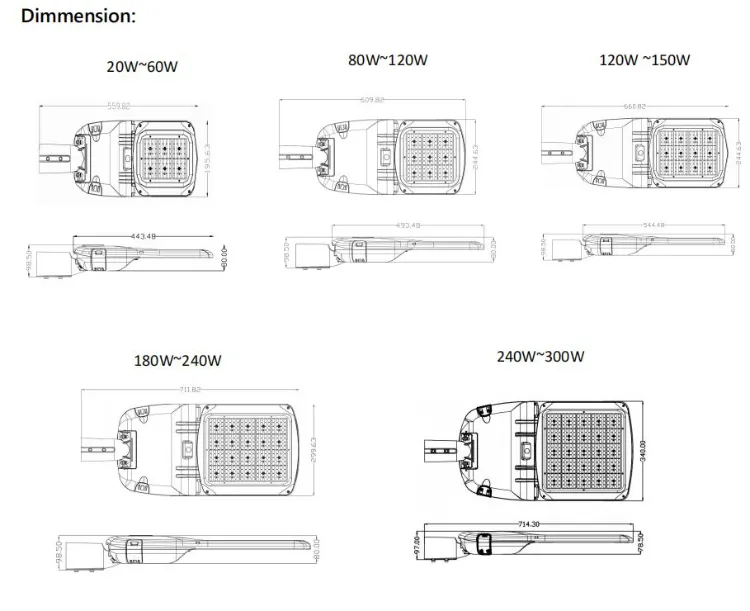

Solar Semi Integrated Street Lights Components

Product Parameters

SKU	ELS-ST15
Watts	40W	50W	60W	70W	80W	90W	100W	120W	150W	200W	300W
LED Brand	200lm/w
LED Tyle	SMD3030
Luminous Efficiency	180 lm/w
Driver Brand	Meanwell / Inventronics (for option)
Extra Function	1-10V dimming / Timer control/ Photocell (for option)
Input Voltage	AC100-277V /50-60Hz
CCT	3000K /4000K/5000K/5700K/6500K
CRI	>75 Ra

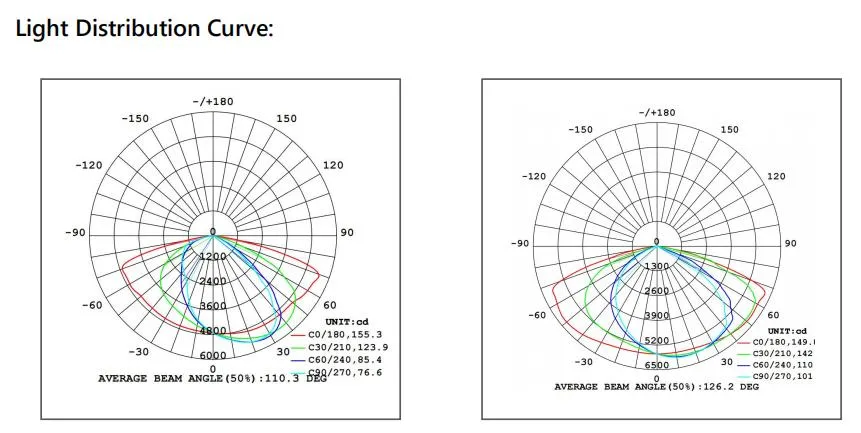

Beam angle	Type II70150° /Type III 15080°/Type IV/ Type V
Material	Die casting aluminum housing +PC lens+ Tempered glass
IP & IK Grade	IP66 IK10
Housing color	Dark Grey color
Power Factor	>0.95
LED Life span	>100,000Hours
Working temp	-30ºC~+50ºC
Surge protection	6KV
Additinal SPD	10KV/20KV for option
Warranty	5 years / 10 years
Weight	4.5KG	4.5KG	4.5KG	5.5KG	5.5KG	5.5KG	5.5KG	6.5KG	6.5KG	7.5KG	9.0KG

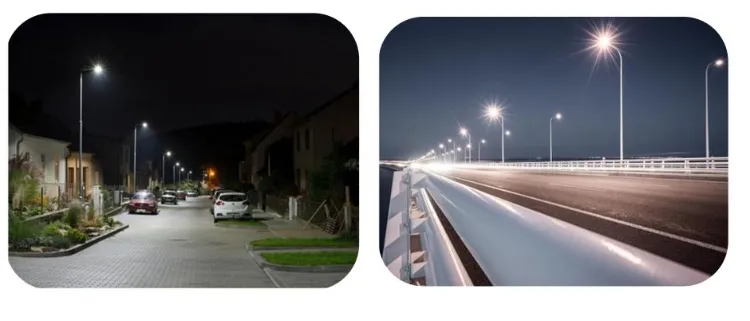

Application Cases

This model is ideal for general site lighting, car parks and many roads from small private access roads to urban streets.

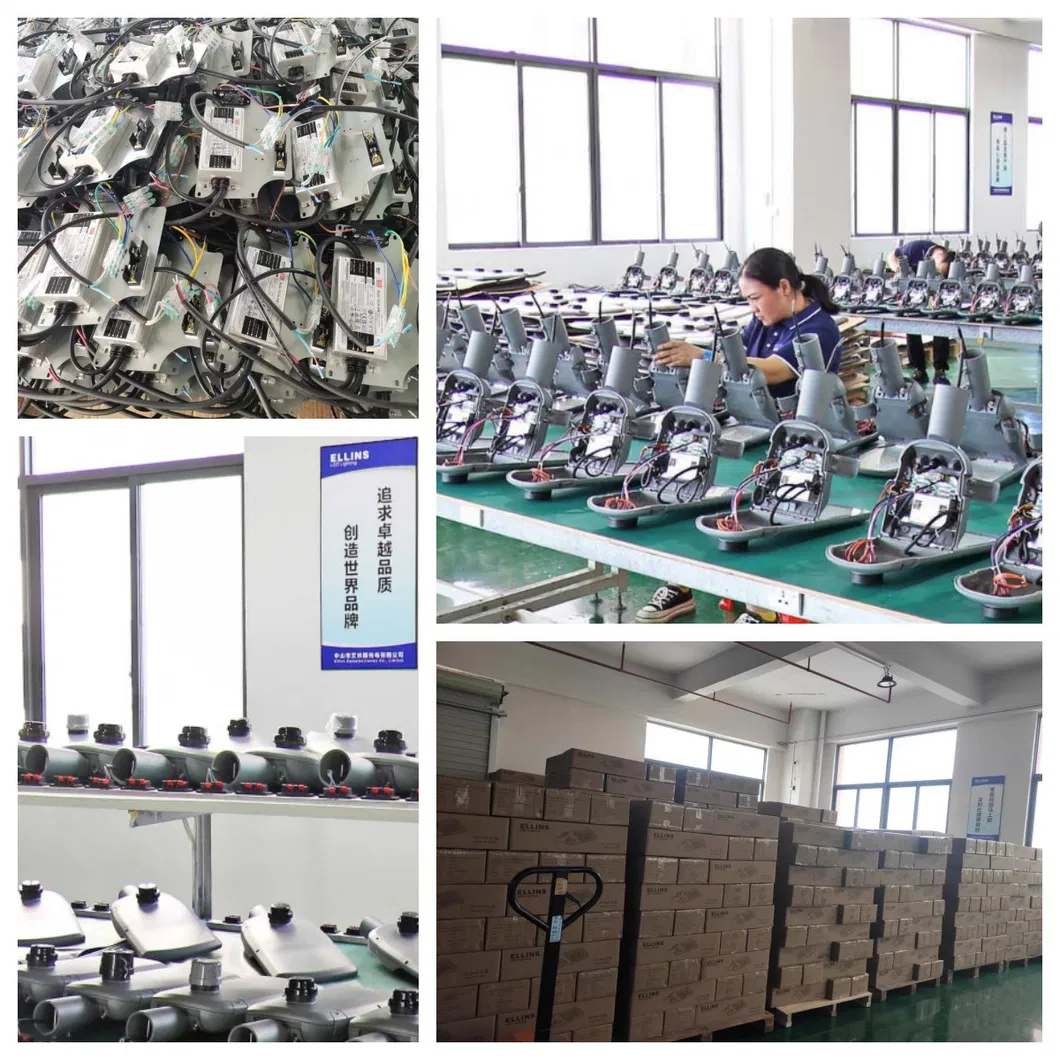

Production

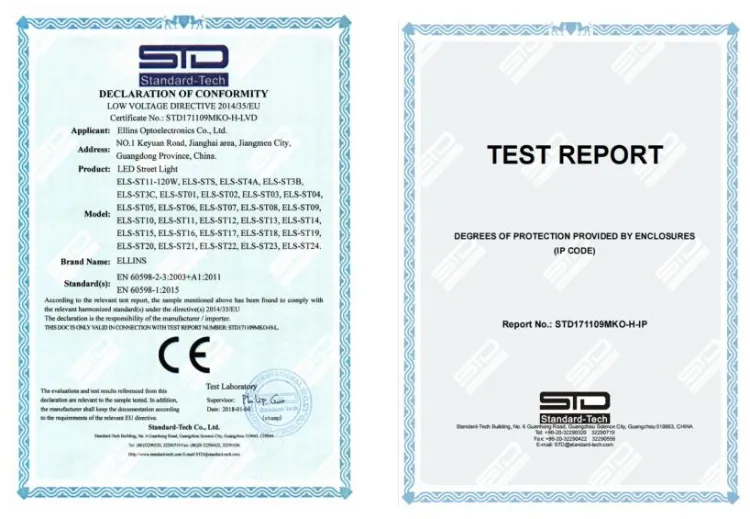

Certifications

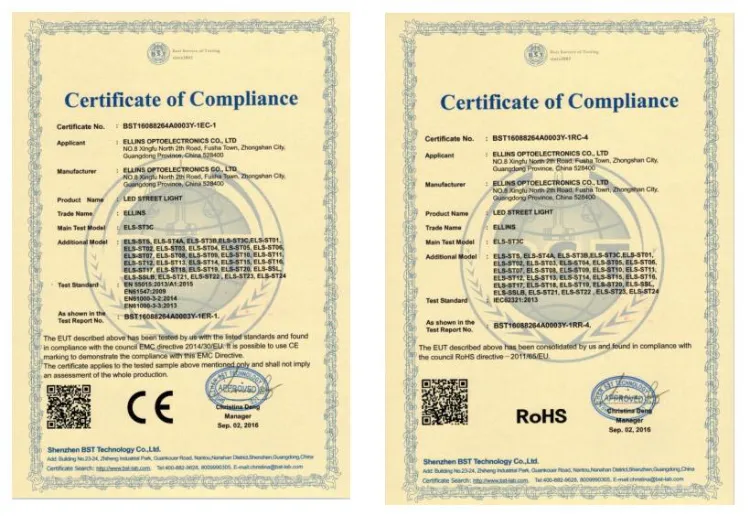

Certification CE EMC Compliance Document

Company Profile

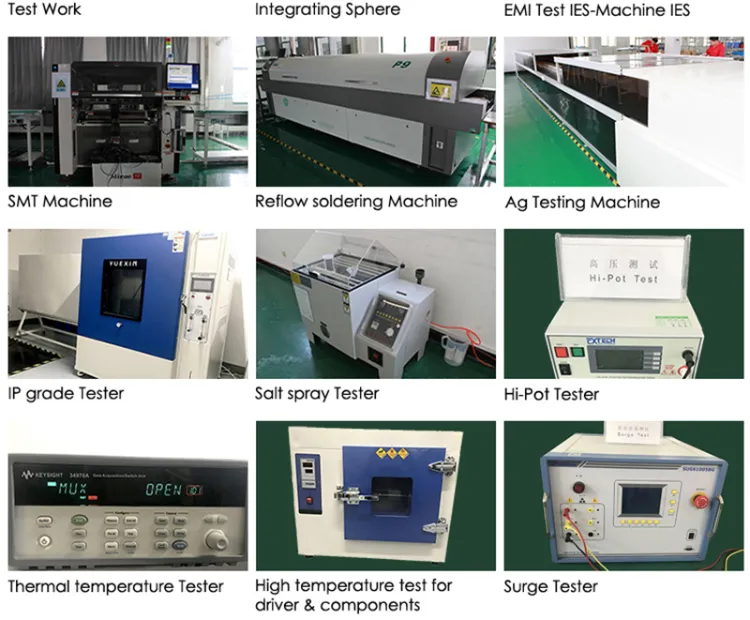

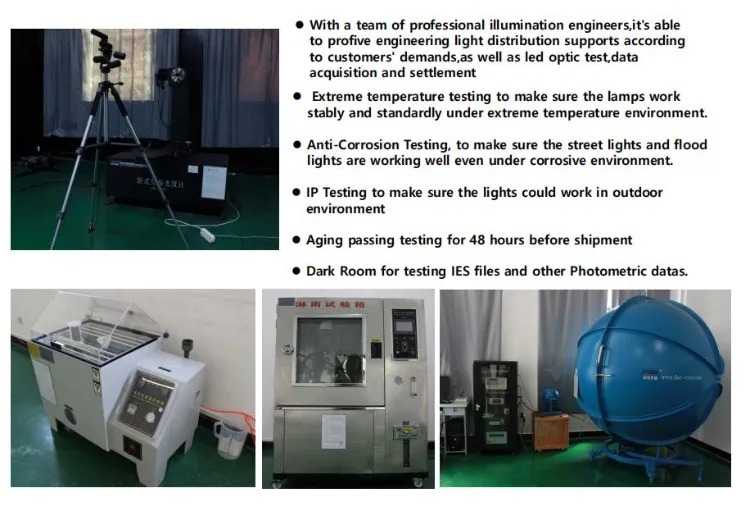

Quality Control

Shipping Policy

We ship to worldwide by DHL, UPS, FEDEX, EMS or by Air or by Sea. We will select the fast and reliable way for delivery. Save on shipping and safer on delivery.

Items will ship within 2-7 business days after payment received.
You can mix all the items freely to place an order, thus you can save shipping cost.
Import duties, taxes and charges occurred in buyer's country are not included in the item price or shipping charges. These charges are the buyer's responsibility.

Return & Warranty

Items will be tested before shipping.
3~5 years manufacturer's limited warranty for defective items (NOT excluding items wrong operated or physical damaged by buyer).
Defective items MUST BE reported and returned within the warranty period in the original packaging, also must provide us the return tracking number.

Feedback Support

We keep high standard of excellence and strive for 100% customer satisfaction. Your satisfaction and positive feedback is very important to our business development. Please leave positive feedback if you are satisfied with our items and service. If you are not satisfied with this purchase, please feel free to contact us. We will try our best to help you until the problem is solved.

Frequently Asked Questions

What type of battery and solar panel are integrated into this street light?

The system features a high-efficiency 36V Monocrystalline Silicon solar panel with a 25-year lifetime and a deep-cycle 25.6V LiFePO4 battery that supports more than 4,500 charging cycles.

How long does it take to charge, and what is the discharge duration?

It fully charges in about 6 hours in bright sunlight. Once fully charged, it provides 12 hours of customizable lighting time per night from dusk to dawn.

What are the weather resistance parameters and IK ratings?

This model boasts an IP66 ingress protection rating, making it completely dustproof and waterproof, alongside an IK10 impact resistance grade. It operates safely in environments ranging from -30ºC to +50ºC.

What customizable driver options and smart controls are supported?

It supports high-quality drivers like Meanwell and Inventronics. Available control configurations include 1-10V dimming, timer controls, photocells, and wireless remote control.

What warranty terms do you provide for this LED street light?

Depending on your specific application and project requirements, we offer flexible manufacturer warranty options of either 5 years or 10 years.

What are the key application scenarios for the ELS-ST15 model?

This street light is perfect for general site illumination, parking lots, highways, squares, gardens, schools, and various urban or private access roads.
