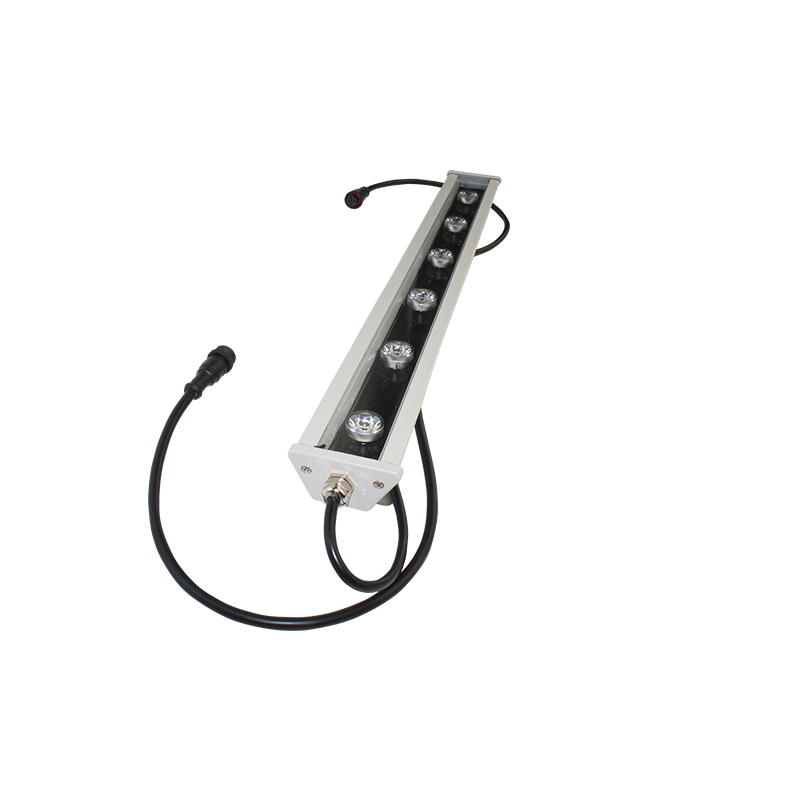

High Power 0utdoor Aluminum Alloy DMX RGB LED Wall Washer Light

Basic Info

Model NO.LCL-RGB-WW3925

IP RatingIP65

DiffuserPolycarbonate

Beam Angle8 16 25 30 45 60

Lifespan50000 hours

Warranty2 Years

CertificationCE, FCC, RoHS

Electric Current TypeDC

Input Voltage24V

LED ChipEpistar/ CREE

LED Quantity18PCS/24PCS/36PCS

Control ModeDMX 512

Colour RangeRGB, Red, Green, Blue, White, Warm White

OEM & ODMAre Available

LED Light SourceHigh Power

Address SettingAuto/Manual

Tube/Universe170 Tube/Universe

Storage Temp-40 to 80°C

Operating Temp-20 to 50°C

Transport PackageNormal Cartons or Customized

Specification1000*55*25mm

TrademarkLCL

OriginChina

HS Code9405100000

Capacity50000 pieces/Month

Product Description

High Power Outdoor Aluminum Alloy DMX RGB Led Wall Washer Light

Housing cover is made of high-quality aluminum alloy with a special design, providing both a smart appearance and high thermal conductivity.
Supporting DMX512 control with manual and automatic address options to meet diverse customer needs. Features long-distance signal transmission and strong anti-interference capability.
High-precision constant current drive ensures consistent lighting effects and uniform color. Beam angles can be selected from 8° to 120° to suit different project requirements.
LED options include RGB, red, green, blue, yellow, and white single color lights.
Designed with high power LEDs. Standard options include 18W, 24W, and 36W, with other power ratings customizable.
Utilizes professional waterproofing technology, achieving an IP65 protection rating.

Specifications

Model	LCL-RGB-WW5525 (18W)	LCL-RGB-WW5525 (24W)	LCL-RGB-WW5525 (36W)
Size	10005525mm	10005525mm	10005525mm
LED Light Source	High Power	High Power	High Power
LED QTY	18pcs	24pcs	36pcs
Emitting Angle	8/16/25/30/45/60°	8/16/25/30/45/60°	8/16/25/30/45/60°
Power	18W	24W	36W
Input Voltage	DC24V	DC24V	DC24V
Control Mode	DMX/DVI/ARTNET	DMX/DVI/ARTNET	DMX/DVI/ARTNET
Address Setting	Auto/Manual	Auto/Manual	Auto/Manual
Tube/Universe	170 pcs/universe	170 pcs/universe	170 pcs/universe
Operating Temp	-20-50ºC	-20-50ºC	-20-50ºC
Storage Temp	-40-80ºC	-40-80ºC	-40-80ºC
IP Rating	IP65	IP65	IP65

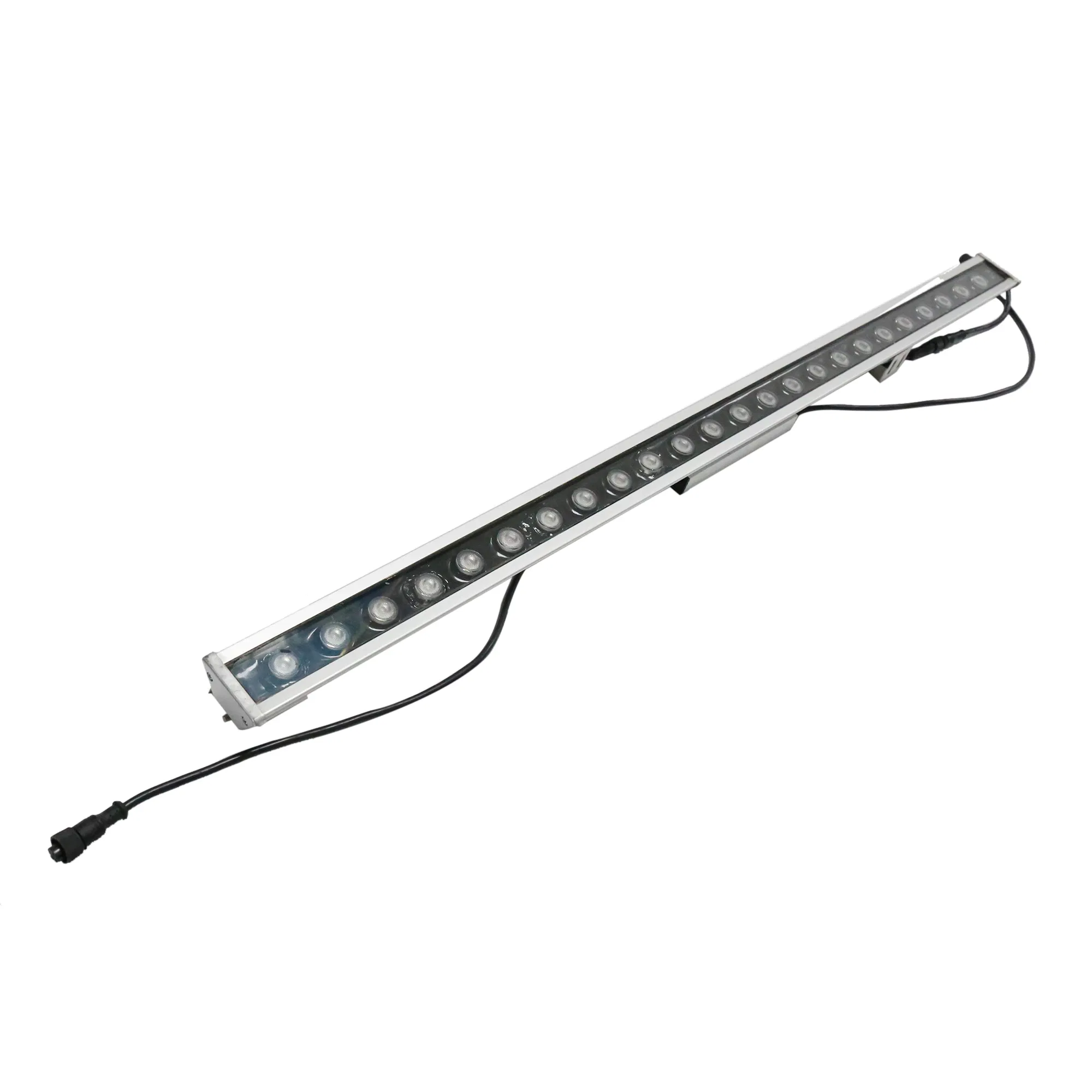

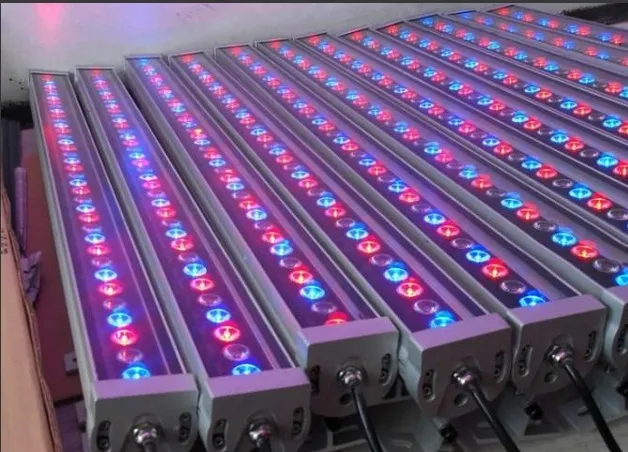

Detailed Photos

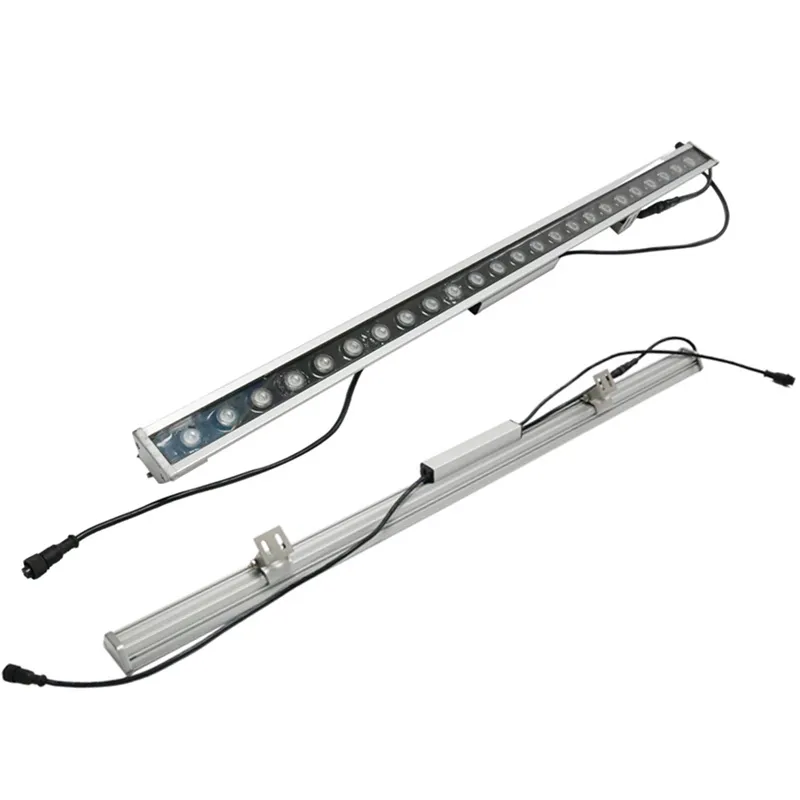

Product Details

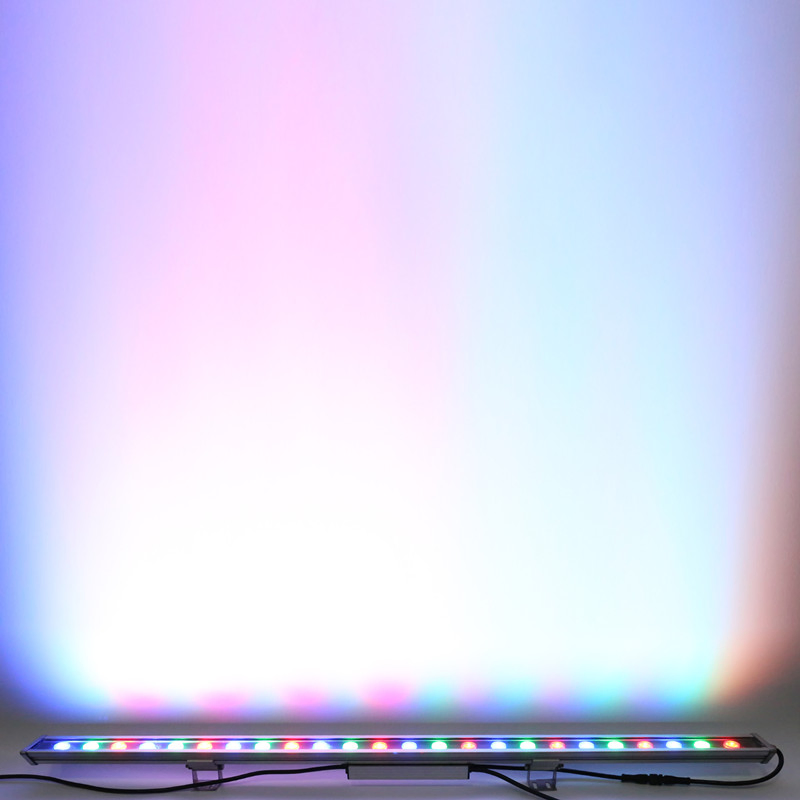

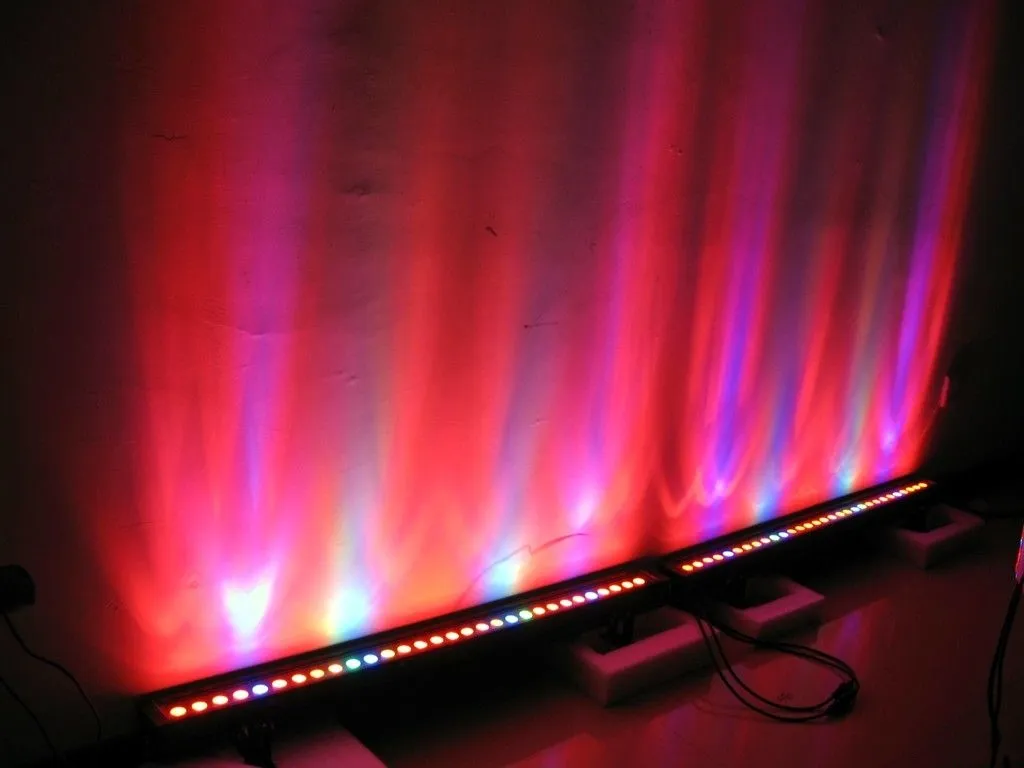

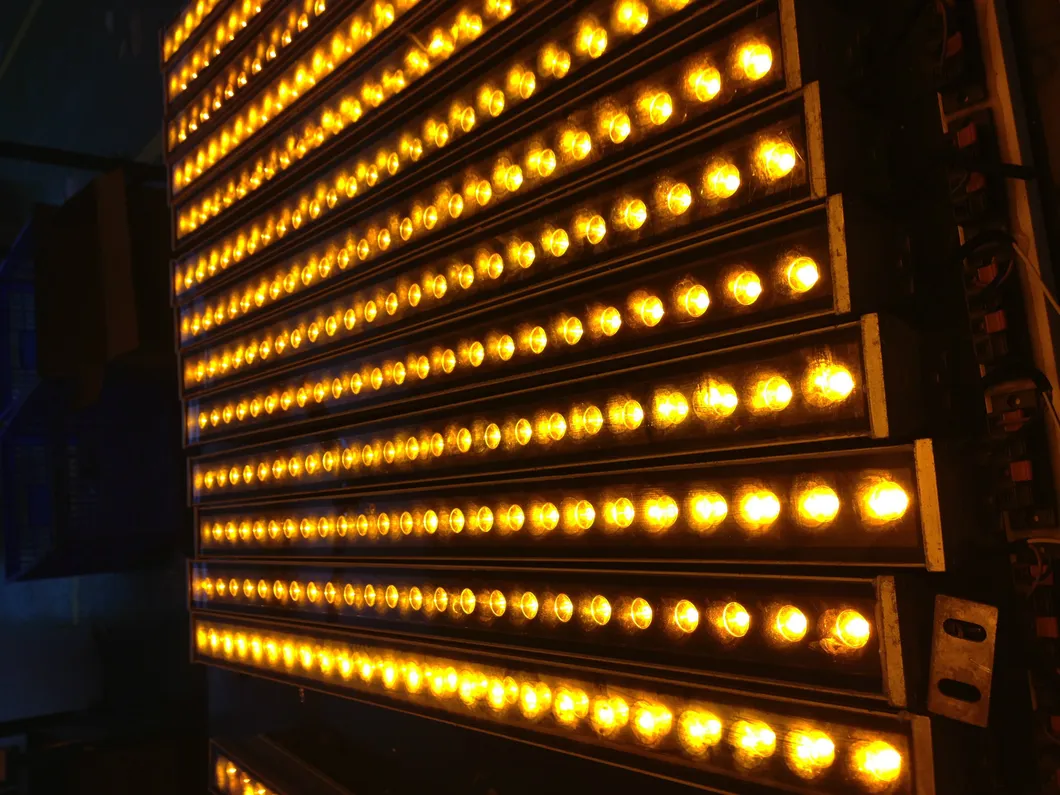

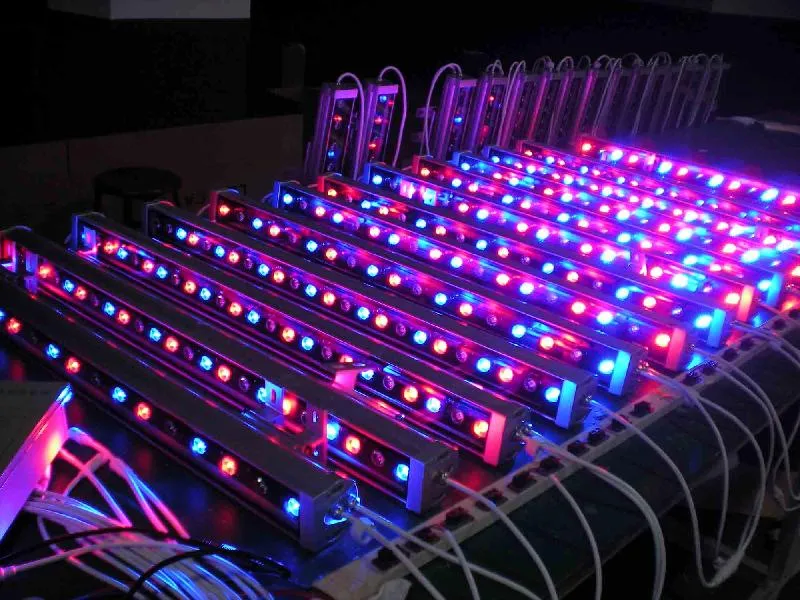

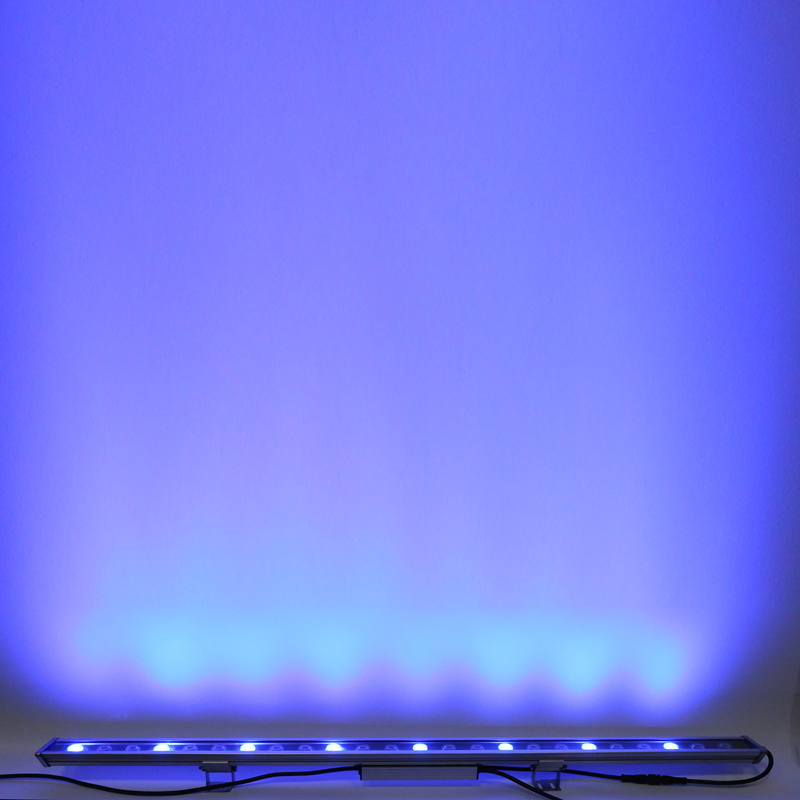

Lighting Effects

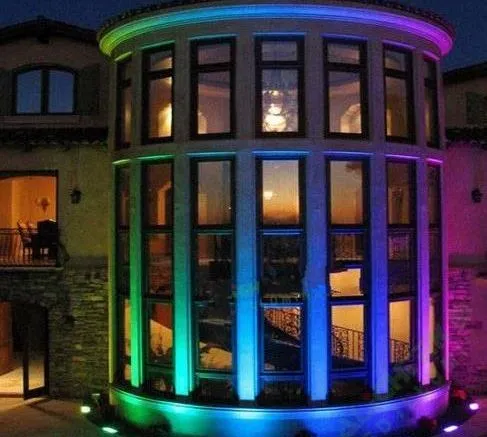

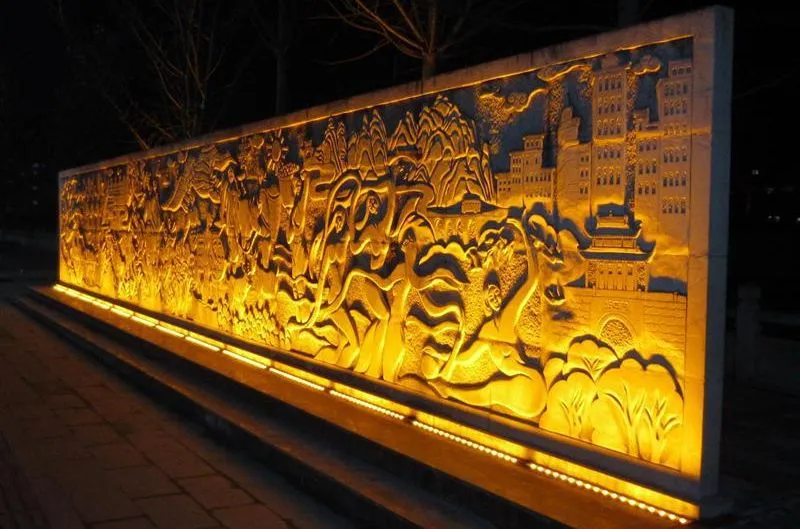

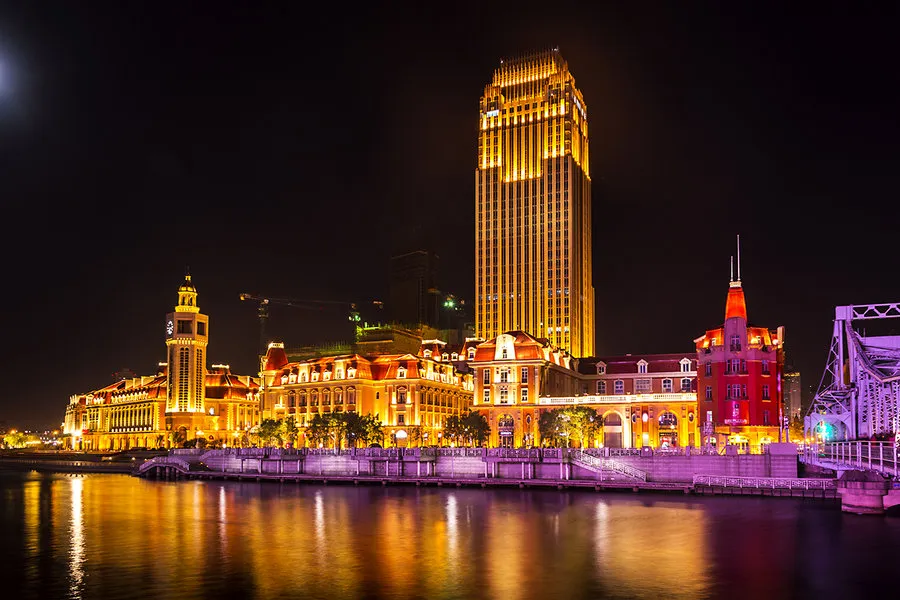

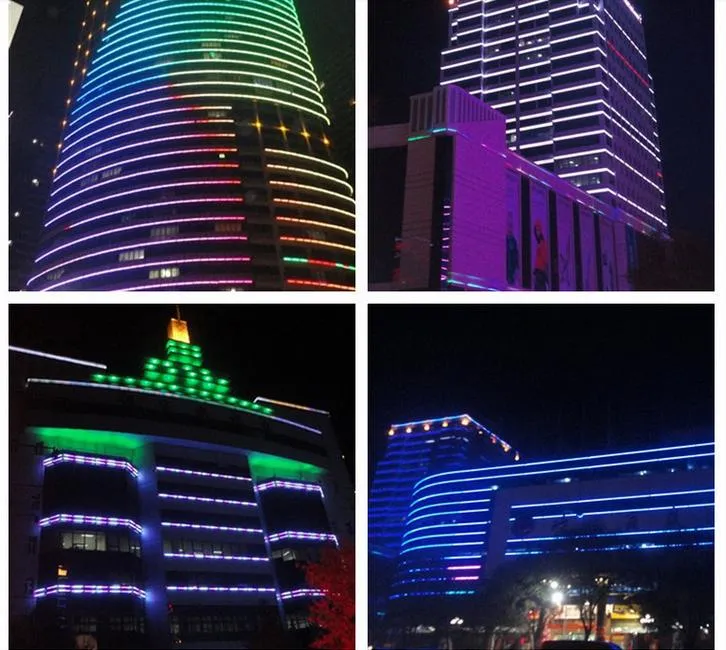

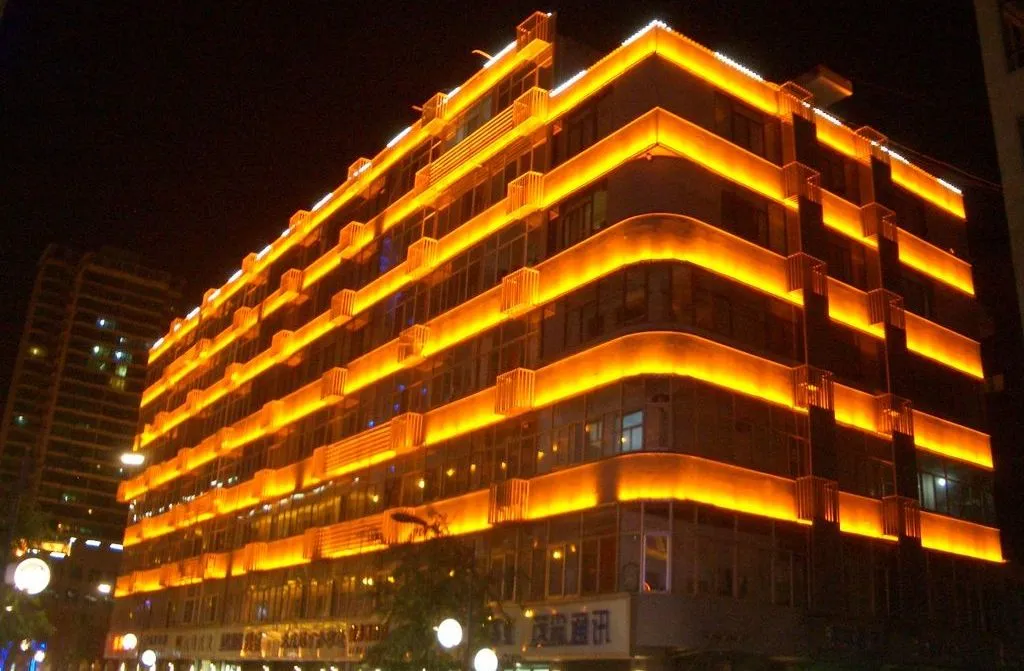

Applications

Packaging & Shipping

Normal protective carton package or according to your request.

Delivery Time	Within 2 weeks after order and payment confirmed.
Payment Term	TT, Paypal, Western Union.
Supply Ability	10000 pcs per month.
Shipping Method	By express, by sea, by air.
