Outdoor IP65 Aluminum Smart Split Streetlight 100W 200W 300W 500W 800W 1000W LED Solar Street Light Best Price

1 / 5

Outdoor IP65 Aluminum Smart Split Streetlight 100W 200W 300W 500W 800W 1000W LED Solar Street Light Best Price

Send Inquiry

Product Description

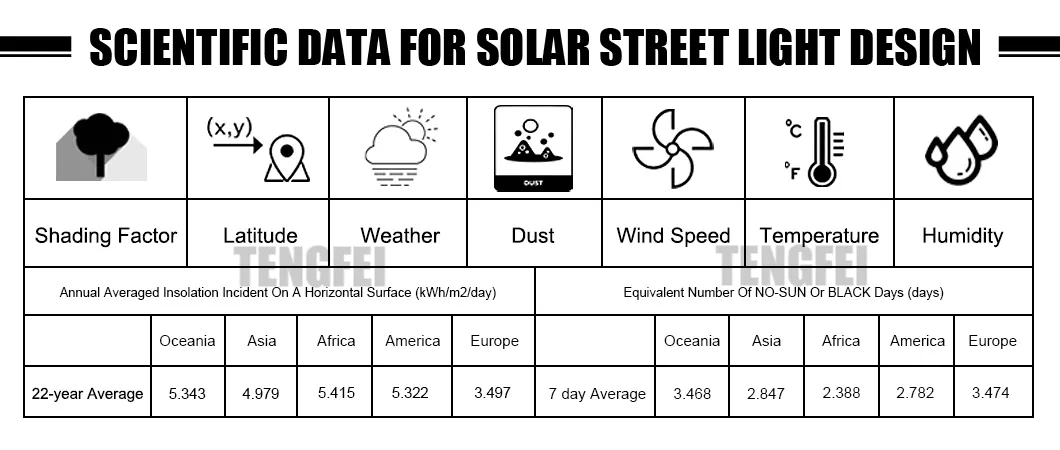

Design Factors

Product Parameters

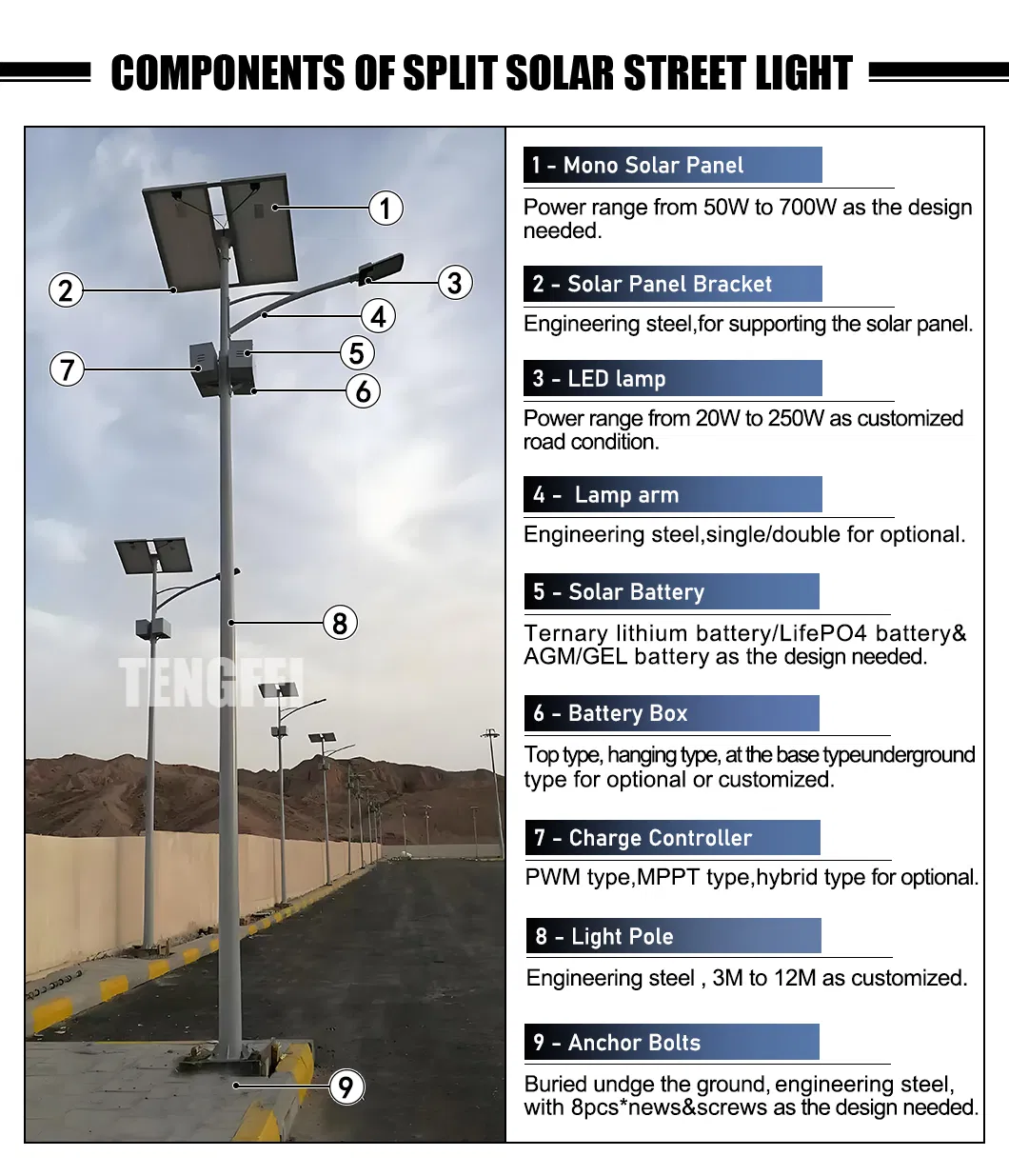

Components		10M Pole 80W LED Solar Street Light As Sample	Life Span	QTY

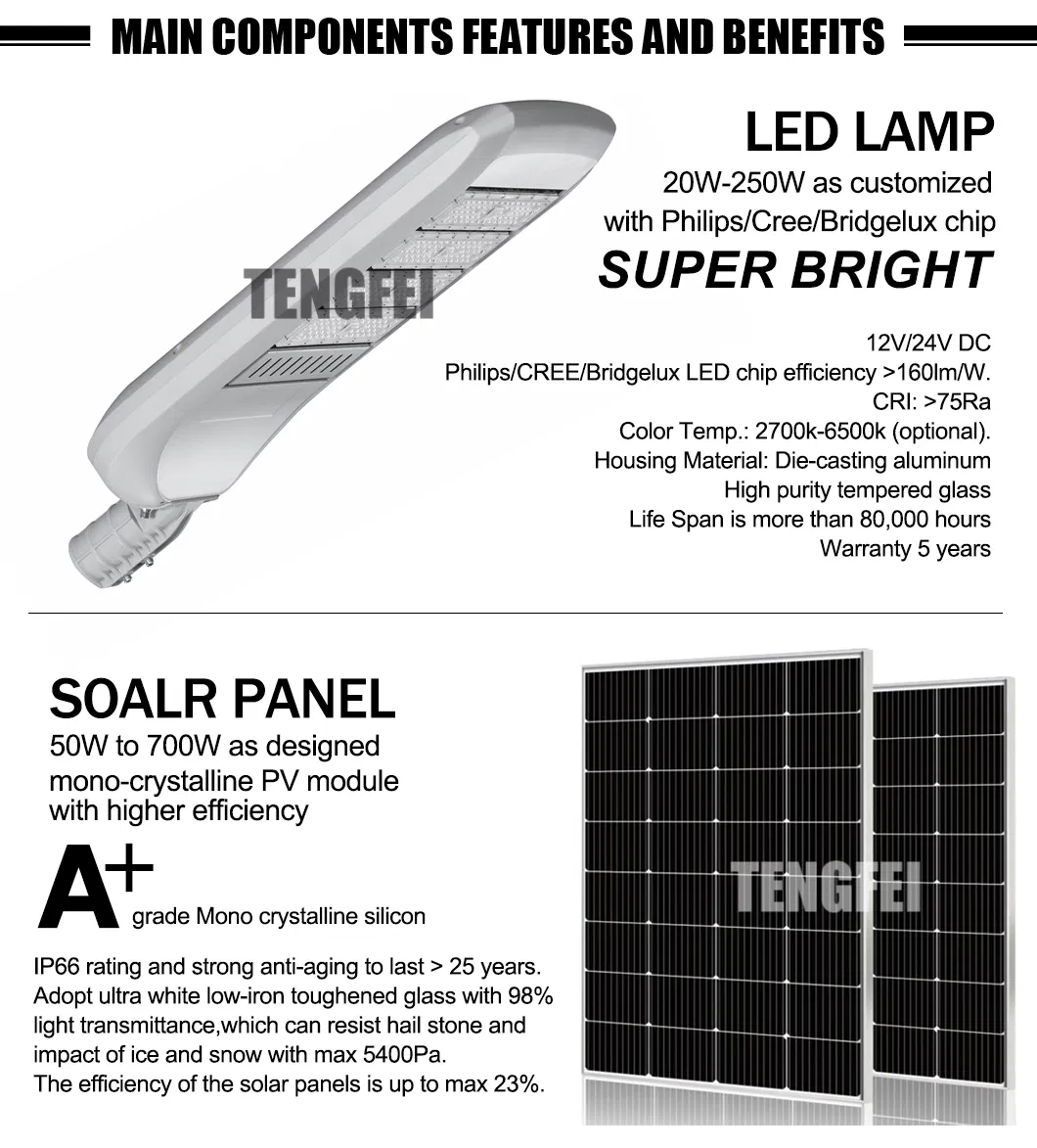

1	Solar Panel	270W/36V, Mono Crystalline, >22.12% Efficiency.	>25years	1pc
2	LED Lamp	80W-24V, famous brand 3030 or 5050, 160LM/W, 3700K-6500K, IP66-IP68	>80,000hrs	1pc

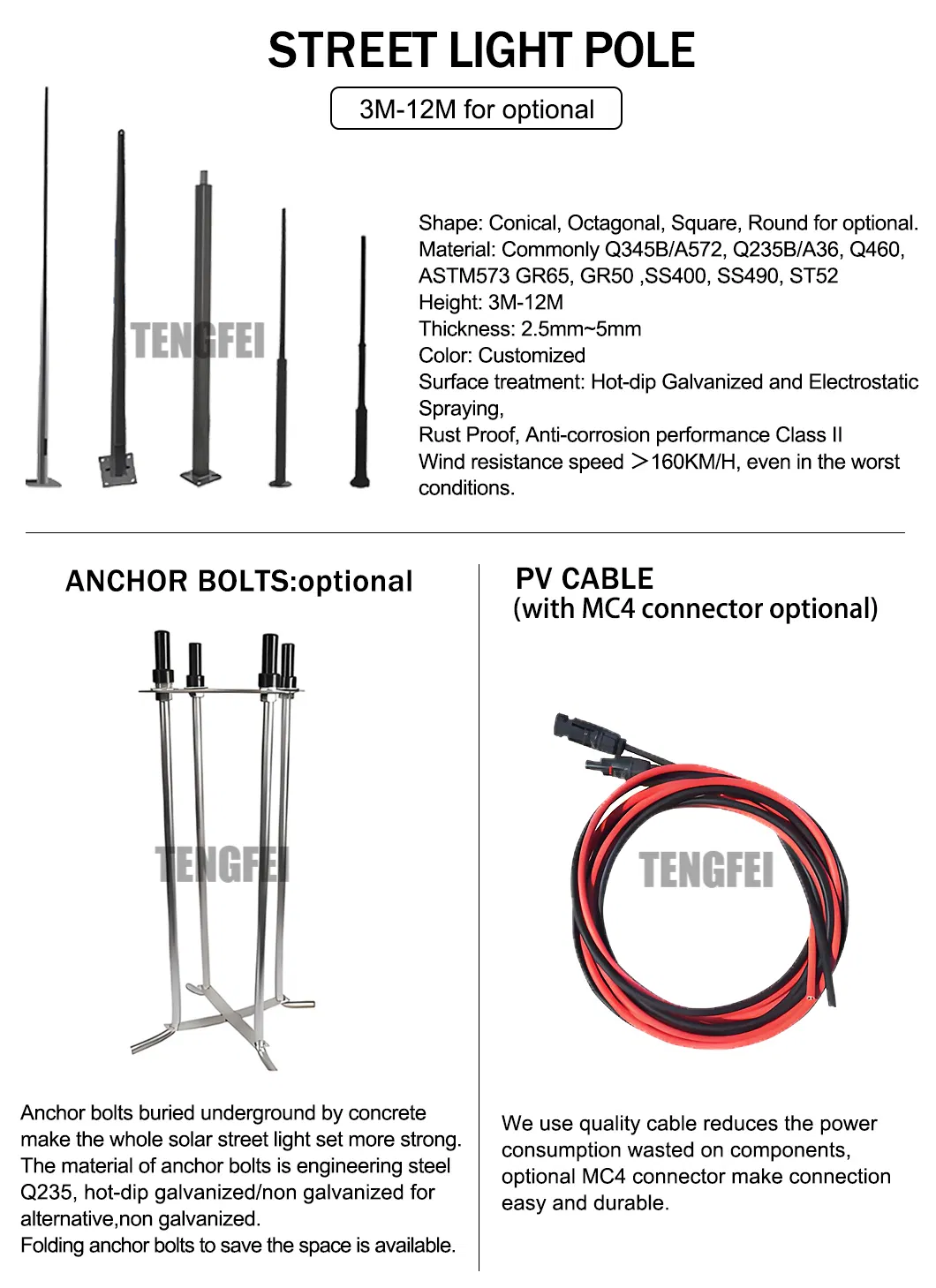

3	Lighting Pole	10M conical, single arm, Q235 Steel, Hot dip galvanized, Powder coating, Rust Proof.	>25years	1pc

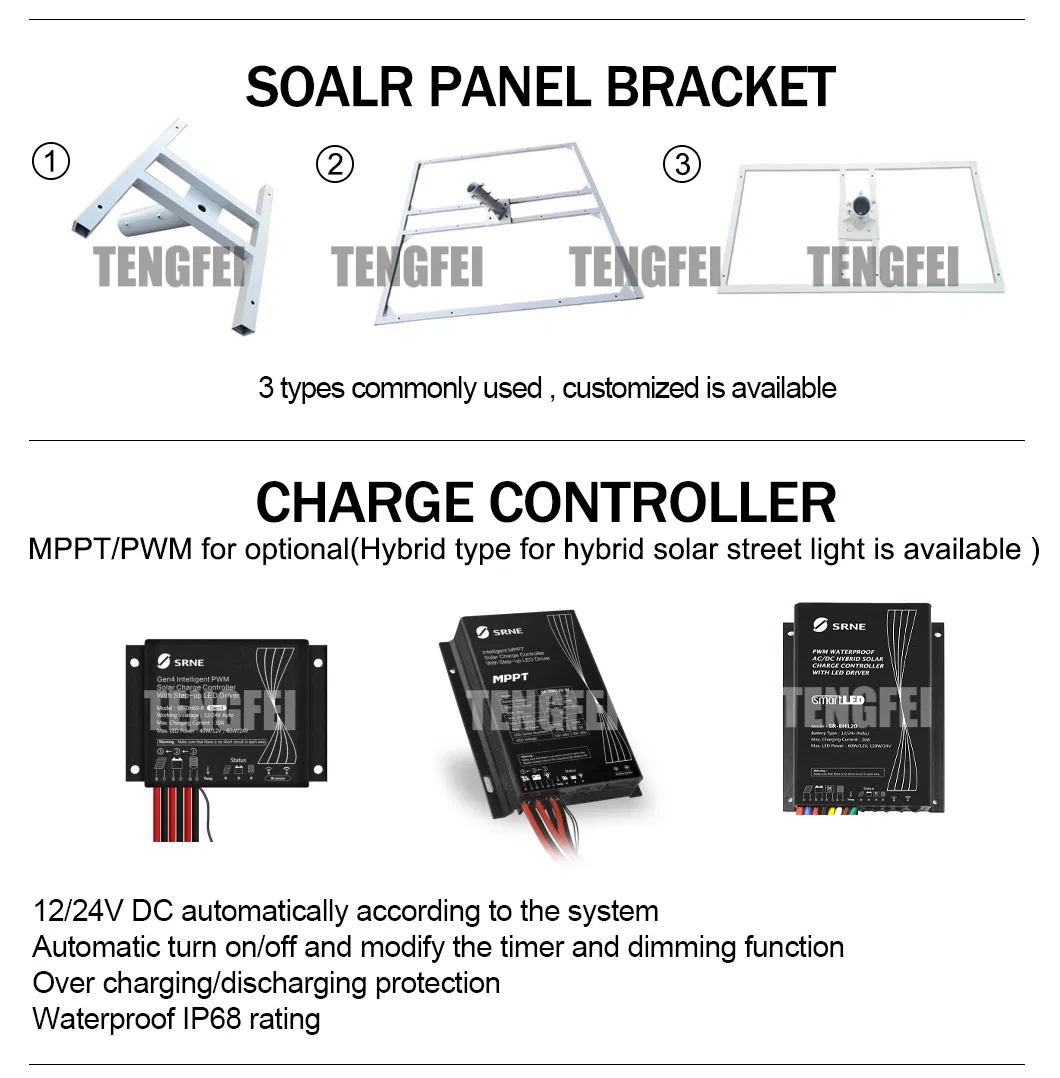

4	Solar Panel Bracket	Detachable, Q235 steel, Hot dip galvanized, Powder coating, Rust Proof.	>25years	1pc
5	Foundation Kit	Detachable, Q235 steel.	>25years	1pc

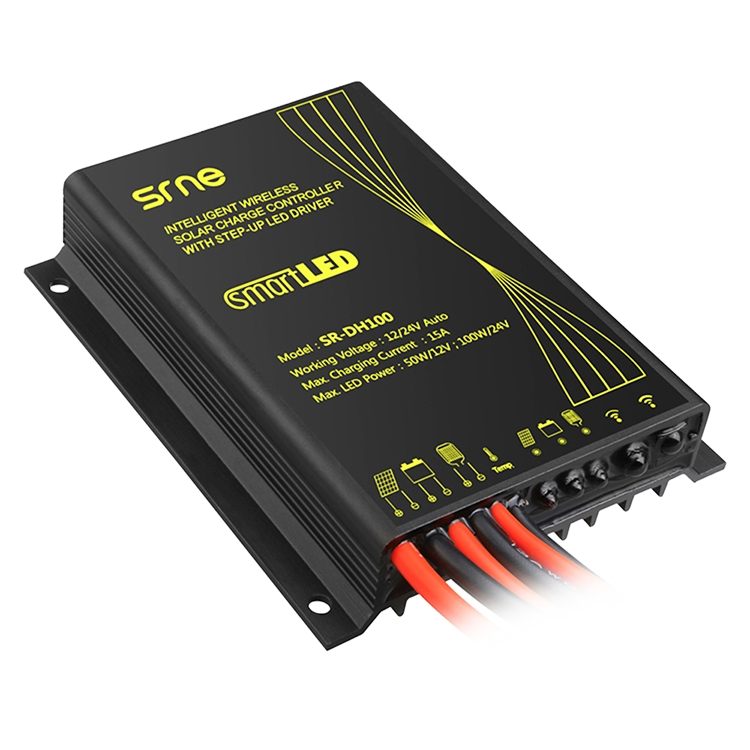

6	Charge Controller	15A, Automatic dusk to dawn auto dimming	>8years	1pc

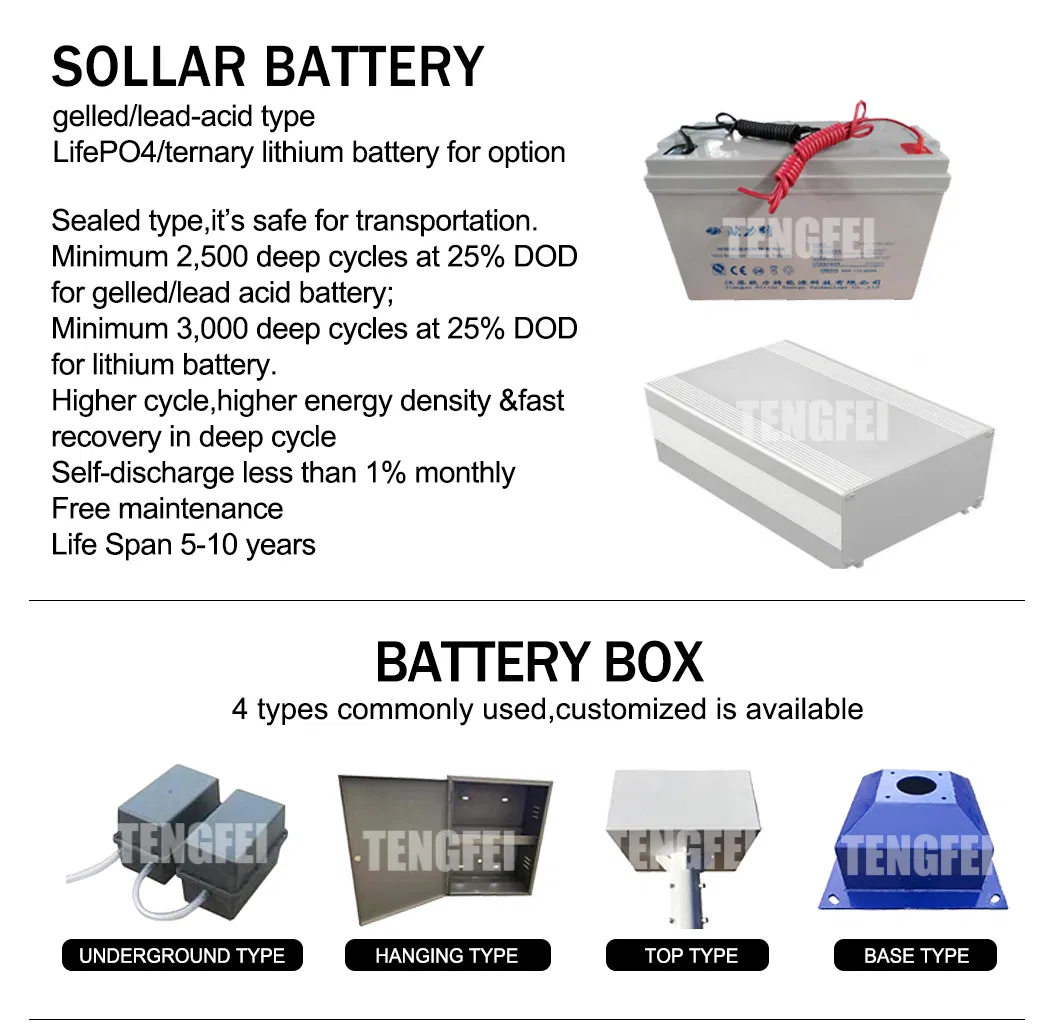

8	Battery	Option 1: 120AH/12V*2PCS GEL battery, Free Maintenance, Deep cycle, Gel type.	>10years	1pc
8	Battery	Option 2: 84AH/25.6V LifePO4 battery, Lighter Weight, Longer Cycle Lifespan, Lithium type.	5~10years	1pc

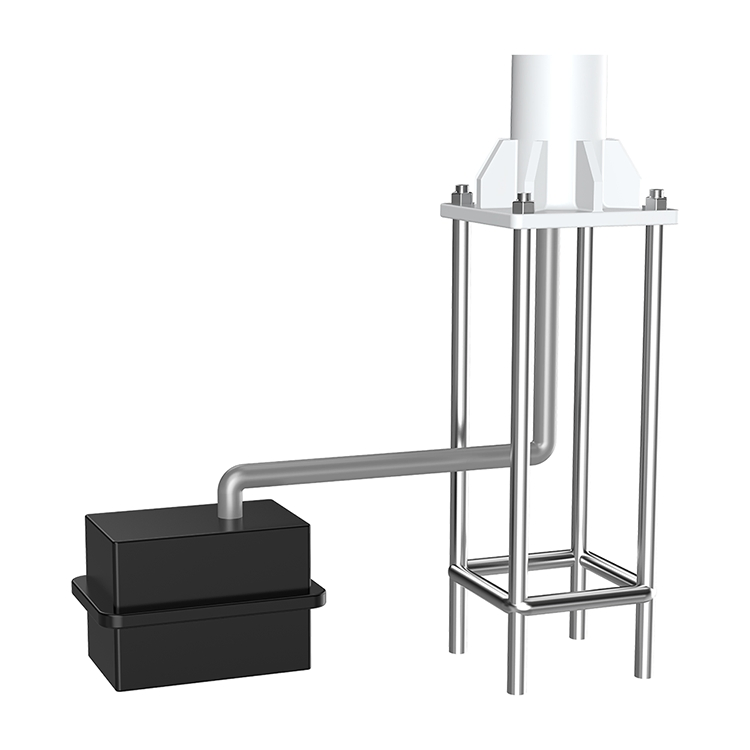

9	Battery Box	GEL battery: Underground battery box	>5years	1pc
9	Battery Box	Lithium battery: top or hang on the pole, hold 1 battery.	>10years	1pc
10	Cables	2*1.5mm², from LED lamp to controller	>20years	3-8 M
		2*4mm², from solar panel to controller		2-8 M
		2*4mm², from solar battery to controller		2-5 M

Working: 10-12hrs/night at intelligent working mode * 2-3 overcast days, 5.0KWH/M²/day.
Noted: pole height 3M to 12M for solar street light choosing, 15M-50M for high mast pole.
LED power 15W to 150W for solar street light choosing.
Customized design is available.
Solar street light with remote function is optional.

Product Description

Why Choose Us

Frequently Asked Questions

What are the battery options for the solar street lights?

We provide two high-performance options: Option 1 is a maintenance-free 120AH/12V GEL battery with a lifespan exceeding 10 years, stored in an underground box. Option 2 is a lightweight 84AH/25.6V LiFePO4 Lithium battery with a 5-10 year lifespan, mounted on top or hanging from the pole.

How long does the solar street light work on rainy or overcast days?

Under the intelligent working mode, the light can operate continuously for 10-12 hours per night and support 2-3 consecutive overcast or rainy days on a full charge.

Are the lighting poles corrosion and rust-proof?

Yes, our lighting poles and brackets are made of high-quality Q235 steel, which undergoes hot-dip galvanizing and powder-coating processes. This ensures superior rust and corrosion protection with a lifespan of over 25 years.

Can I customize the pole height and LED wattage?

Absolutely. Standard configurations support pole heights from 3M to 12M, and high mast systems range from 15M to 50M. The LED lamp output can be configured from 15W up to 150W based on your project requirements.

What is the waterproof protection rating of the LED lamp?

The LED lamp features an IP66 to IP68 rating, ensuring high resistance to water, dust, and outdoor environmental hazards, with a light source lifespan exceeding 80,000 hours.
